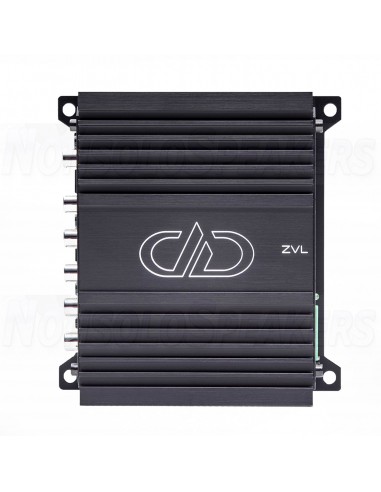

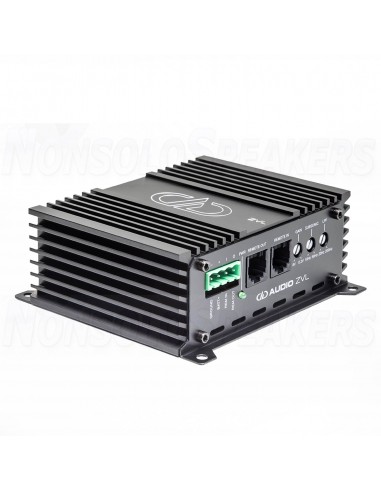

DD Audio ZVL Multi-Amp Sync Module

.

The ZVL is a multi amplifier synching module designed to allow a user to link, strap, and tune the preamps of multiple amplifiers from a single module for precisions control of large mobile audio systems. The ZVL was designed to work seamlessly with the new M Series amplifier’s ZVL INPUT, but it is universally compatible and will work with the DD Audio DM Series as well as other brands of Amplifiers. You can also Link Multiple ZVL Units Together if needed

.

Technical Specifications

• Operating Voltage: 9 - 16
• Input Channels: 2
• Output Channels: 10
• Max Current Draw (Amps): 200mA
• RCA Input Sensitivity (Volts): 0.2 - 8
• RCA Output Voltage (Volts): 8
• Frequency Response: 10 - 25k
• RCA Input S/N: ≥ 105dBA
• THD: 0.2%
• RCA Input Impedance: 20k
• RCA Output Impedance: ≥ 100
• Remote Out Current: 500mA @ 12V
• Low Pass Filter: 20 - 200
• Sub Sonic Filter: 10 - 50
• Dimensions (Inches): 4 x 5 x 2
• Dimensions (MM): 98 x 125 x 47
• Link and Control Multiple Amplifiers
• Strap and Control Multiple Amplifiers
• Active RCA Signal Distribution
• Compatible with All Amplifiers

• Link Multiple ZVL Units Together
