Digital Designs Basskit DD D600 + DDRLLE-508D-D2

.

The DD Audio Bass includes a reflex enclosed 8 ″ LE-508D-D2 subwoofer + a truly compact D600 1ohm stable mono amplifier. LE-M is more! The DD Audio LE-M508D is a compact prefabricated case. The new generation of the popular LE-M08 prefabricated housing, which is even better than its predecessor.

.

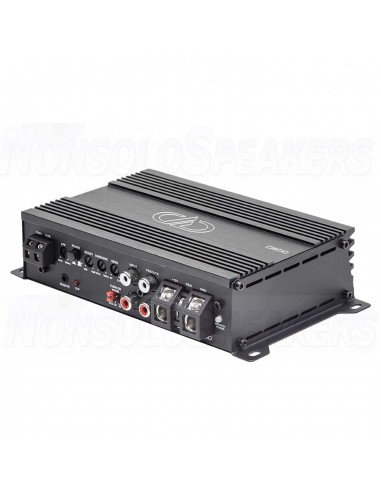

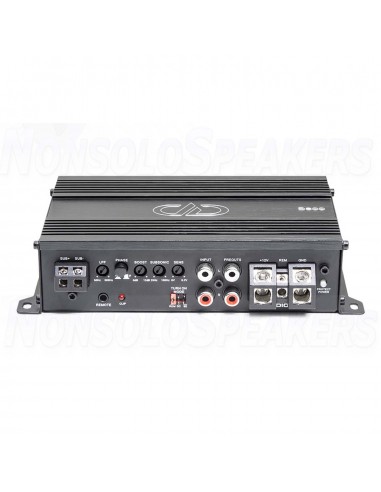

DD Audio D600 mono amplifier for subwoofer

The D600 is a 1-ohm monoblock subwoofer amplifier with a total output power of 600 watts. The adjustment is made easy with the filters in use, as well as the clip light. Installation is facilitated by controls and connections on the same side, input mode switches and automatic start options. Suitable coated internal circuits and corrosion-resistant clutches for boats, motorcycles, ATVs, etc. provide better moisture resistance. Although the D-Series amplifiers are very compact, they still have screw terminals and speaker connections, separate output sections, and rugged anodized aluminum heat sinks. This ensures that the power management is correct from output to output, increasing both operational stability and long-term durability.

.

Technical Specifications

• Operating Voltage: 9 - 16
• Test Voltage: 14.4
• Input Channel(s): 1
• Output Channel(s): 1
• Continuous Wattage @4ohm: 200 x 1
• Continuous Wattage @2ohm: 400 x 1
• Continuous Wattage @1ohm: 600 x 1
• Max Current Draw (Amps): 60
• RCA Input Voltage Sensitivity: 8 ~ 0.2
• RCA Input S/N: 80dB
• Damping Factor: 100
• THD: 0.2%
• Frequency Response (Hz): 20 ~ 500
• Sub-Sonic Filter: 25 - 100
• Low-Pass Filter: 50 - 500 ( 24 dB/oct )
• Pass Thru Output: Yes
• Remote Control: Remote Included in Box
• Power Wire Gauge: 4
• Speaker Wire Gauge: 12
• Dimensions (Inches): 6.3 x 4 x 1.7
• Dimensions (MM): 160 x 104 x 43

.

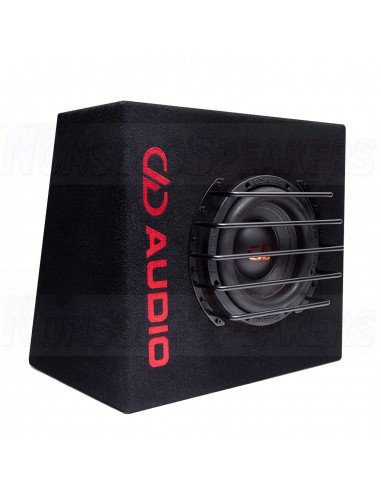

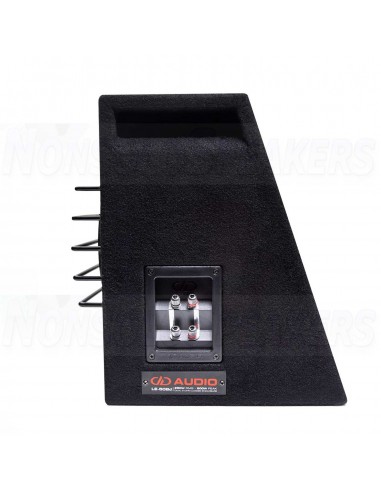

DIGITAL DESIGNS LE-508D-D2 8" SUBWOOFER

.

LE-M is more! DD Audio LE-M508D is a compact loaded enclosure. Next generation of famous LE-M08 is now even better. Driver has all new design. Spider, surround, cone and all parts of this little beast are re-thinked and re-designed to outperform the previous model. Excellent choice to a truck cabin, small car

.

Technical Specifications

• Recommended amplifier: 250-500 W
• Voice coil diameter: 2 ″
• Impedance: 2x 2ohms
• Dimensions: 381 H x 406 W x 178 Top / 305 Base
• Shipping Weight: 14 kg

.
