During the great success of The Revelation Hybrid, there was the question if it was possible to produce a lower-priced version. This was the moment The Revolution Hybrid was born: a single-lead loudspeaker cable with the same sonic properties but smaller in size.

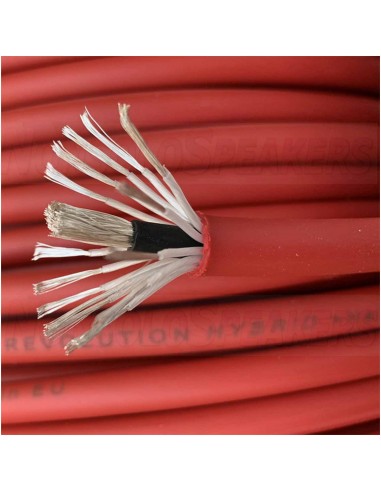

The general construction is the same as with The Revelation Hybrid:

First an inner group with 308 x 0.14 mm. very high-grade Matched Crystal (MC) OFC strands with a dense coating of very pure silver. The inner group exhibits a total metal cross-section area of 4.74 mm².

Covering this core is a Linear Structured Carbon ® (LSC) saturated layer which bridges minor defects and captures and transforms the radiated magnetic field of the inner conductor to an audio signal again.

The helically wound outer conductor structure employs the same silver-coated MC OFC metal quality as found in the core and consists of 16 separate conductors, each with 19 strands of 0.11 mm. This produces a metal cross-section area of 2.89 mm². These 16 outer conductors are individually insulated and are standardly wired in parallel with the centre conductor, giving a single lead cable. Their being individually insulated however also allows them to be wired together as a separate signal return. (Versions wired as such and fit with matching connectors are available either as twin-lead speaker cables or as single-ended interconnects on special customer demand).

The total metal cross-section area of The Revolution Hybrid is 7.63 mm² giving the cable its very low resistance of 0.226 Ohm/100 m.

The outer jacket is made of red Hulliflex ®, a mechanically superb insulation material.

.

Specifics

• material Hybrid
• product category interconnect - Unbalanced
• product category speaker cable - Single-lead, Mid-range
• cable type Single lead, multistrand
• conductor material HYBRID: Both centre conductor and outer groups: High purity dense Silver coated high purity Matched Crystal OFC + Linear Structured Carbon ®  saturated layer(s)
• design purpose          Highest quality loudspeaker cable
• eff conductor          Core: 4.74 mm²; Outer groups combined: 2.89 mm²; Total: 7.63 mm² / Total: AWG 8.4 / Core: 308; Outer 16 groups each: 19
• external diameter 8.0 mm.
• jacket colors         Red
• resistance                 Core: 0.364 Ohm/100 m.; Outer groups combined: 0.597 Ohm/100 m.; Both parallel: 0.226 Ohm/100 m.
• insulation Jacket:      HULLIFLEX ® 3 / 300 Vrms min.
• connector types         Our 6.5 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors or our 8.3 mm. Ø cable entrance diameter BERRI Bus Connectors; Custom mountable on any length ordered.
• remarks                 Self mounting of connectors is not advised since special soldering equipment is required;
