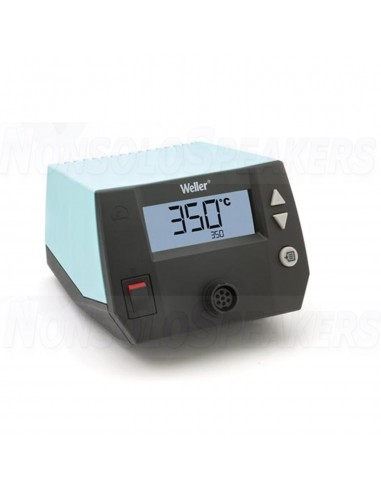

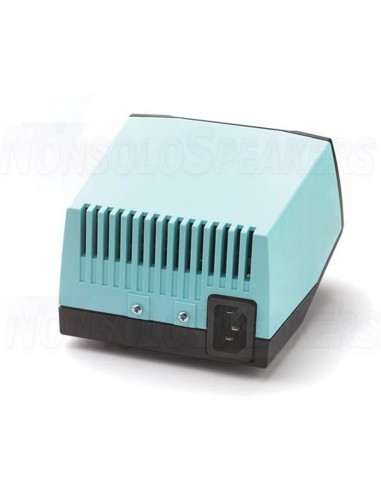

Weller WE 1010 soldering station

Product description

Weller WE 1010 digital 1 channel soldering station, 70 W / 230 V, temperature 100 °C - 450 °C.

.

Highlights

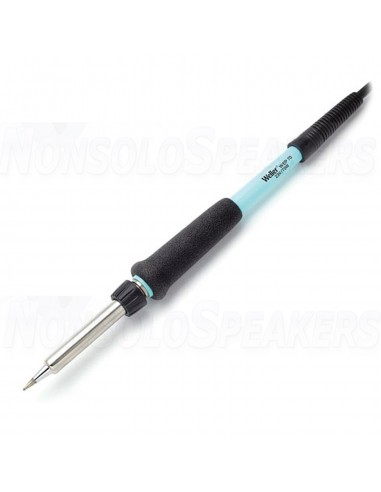

70 W solder iron with ergonomic handle and providing toolless tip change

ESD-safe station, iron and heat-resistant silicon cable for safe handling

Uses ET soldering tips

Standby mode and auto setback conserves energy, protects equipment

Password protected to preserve settings

Change hot tips out by hand by twisting the plastic knurled nut on the soldering pencil without an additional tool

LCD display

.

Product Details

Weller WE 1010 Soldering Station | 70W

The Weller Magnastat system operates through a ferro-magnetic sensing device which changes its characteristics when specific temperatures are reached. This causes it to either attract or repel a permanent magnet which operates a power supply switch. In this way power to the heating element can be quickly switched on or off to either provide extra power for soldering operations or reduce power when idling. Various pre-selected tip temperatures are available to permit different types of soldering to be undertaken. Working temperature selection is achieved by simply changing the "temperature sensing" soldering tip. These are available in temperature ratings of 260 °C, 310 °C, 370 °C, 425 °C and 480 °C.
