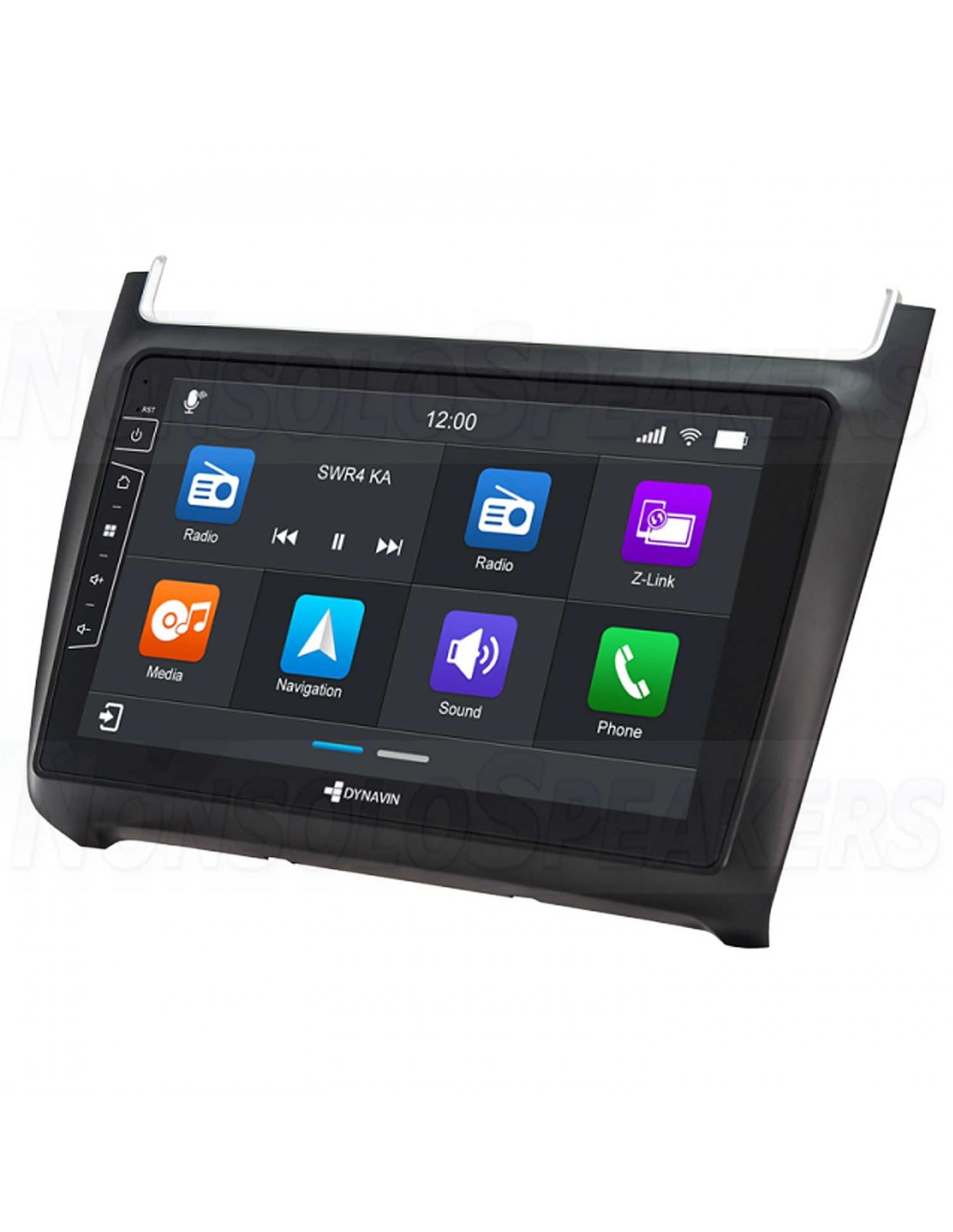

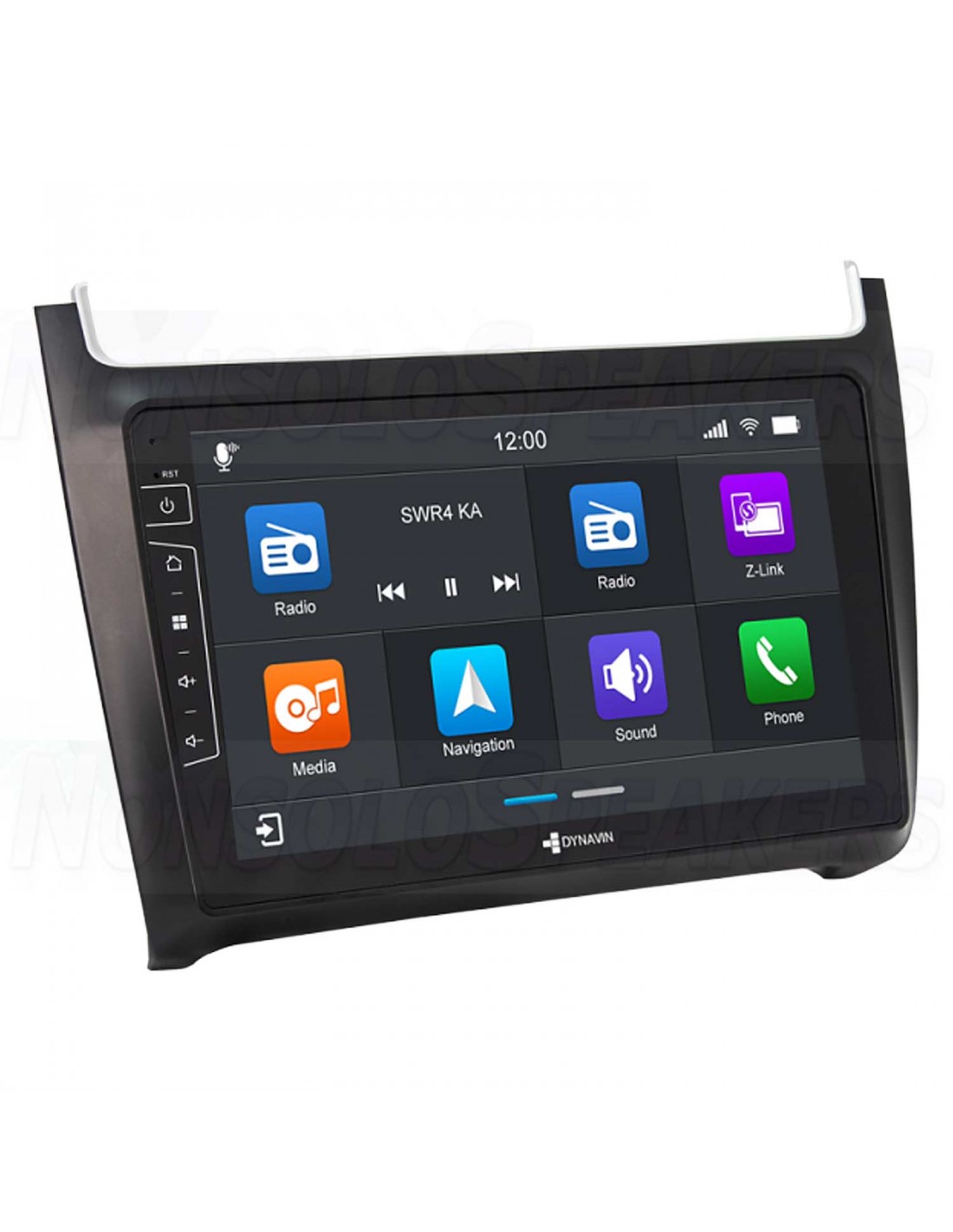

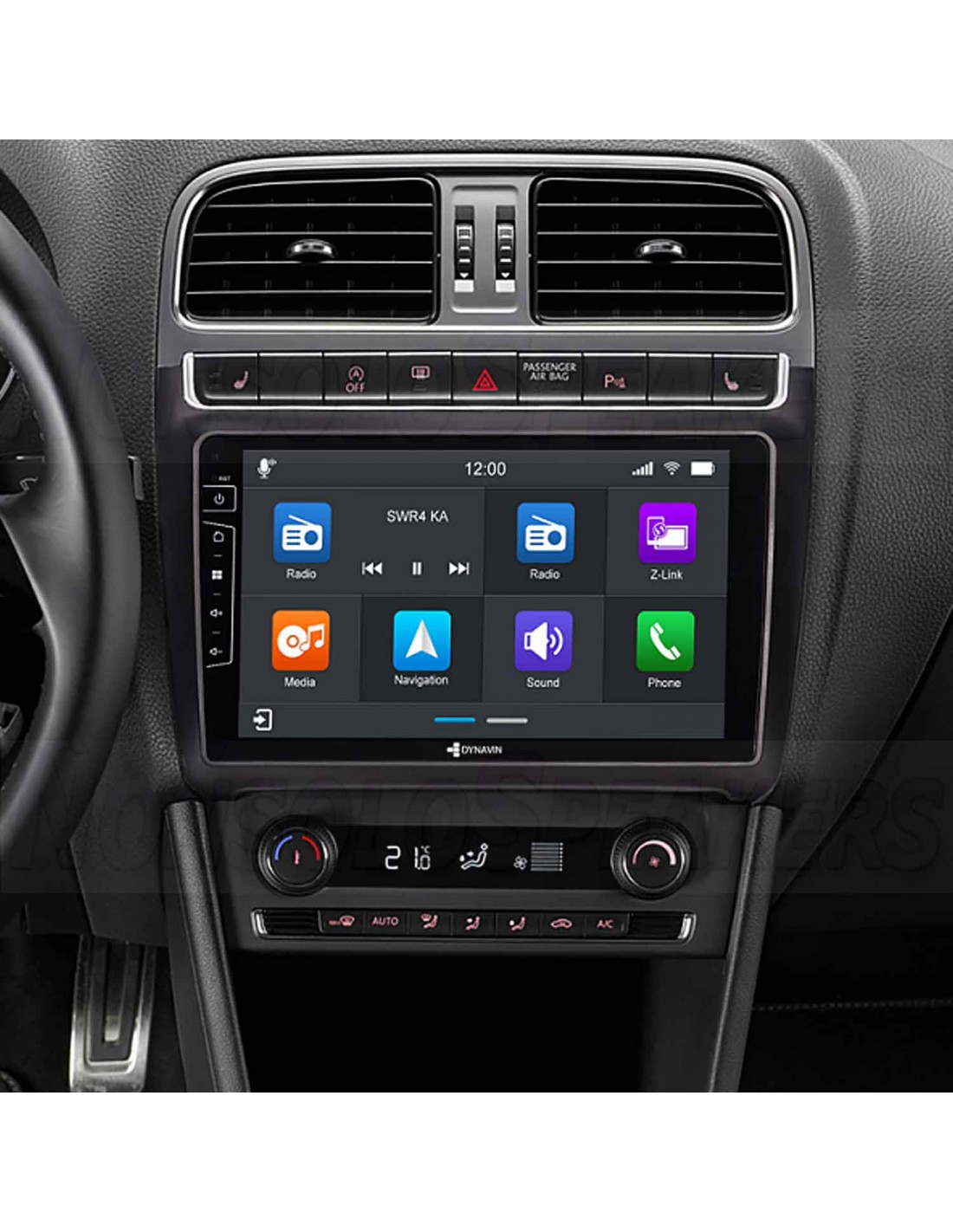

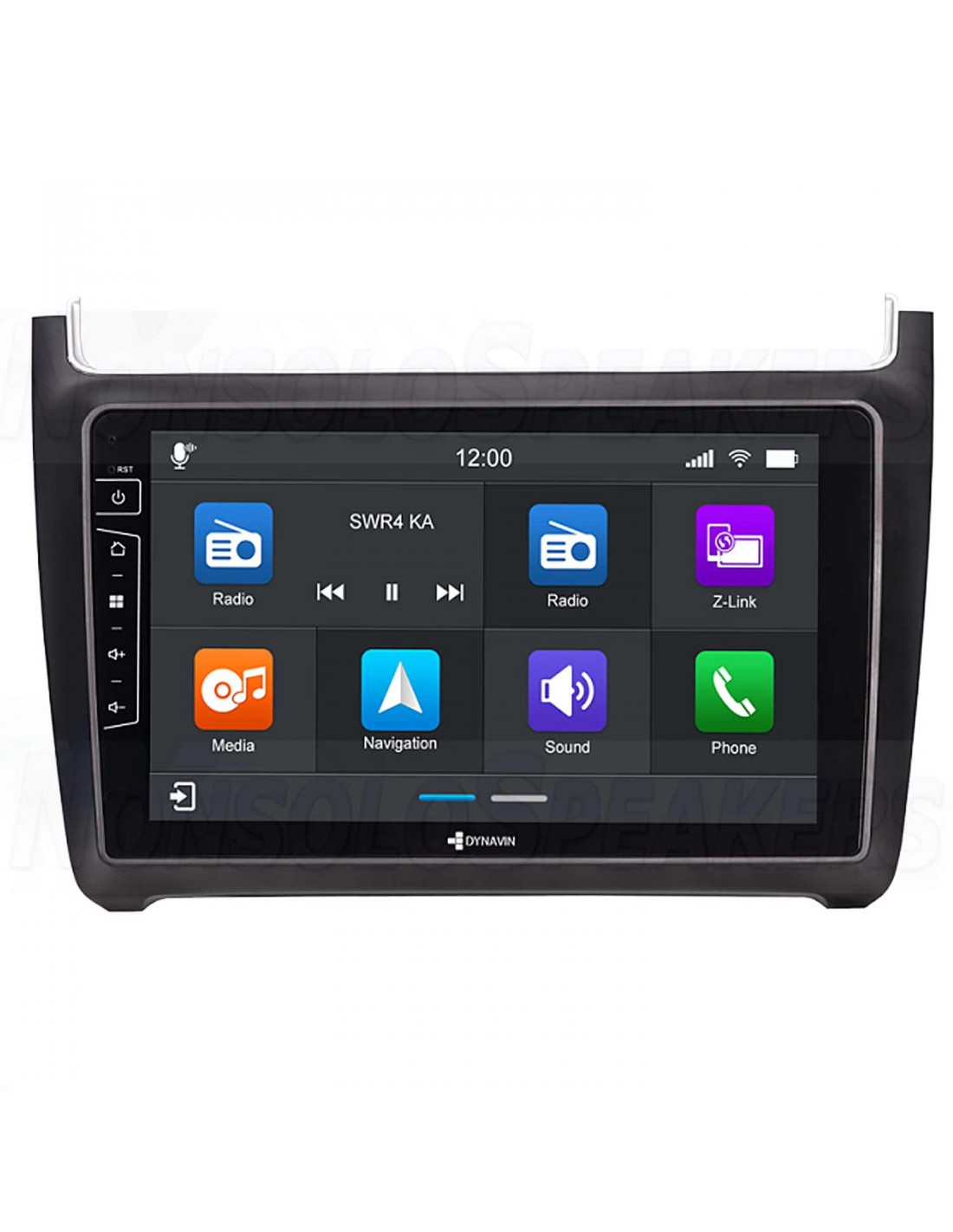

Dynavin D8-69L Pro Navigation VW Polo V 6R 2009-2014

Dynavin D8-69L Pro Navigation VW Polo V 6R 2009-2014

• Premium 9"/16:9 LCD capacitive touchscreen display (1240 x720 resolution).
• Support Wireless Apple CarPlay, Apple CarPlay and Android Auto.
• Support SmartPhone Mirroring.
• Preinstalled with Google Play Store. Connecting to the internet through built-in Wifi module.
• CANBUS solution integration for steering wheel controls.
• BT for audio streaming and hands-free phone calls via any smartphone (Android, Apple, etc.). External microphone included.
• FM RDS TMC tuner with DSP noise masking and 15 preset stations, built-in DAB. Supports switching back and forth automatically between DAB and FM (Seamless Blending).
• Integrated Sound DSP processor with 9-bands EQ and time correction.
• AV input/output for aftermarket subs/amps, etc.
• Multimedia player by USB connectivity.
• Built-in navigation software with 3D view and premium POI.

Technical Data

General

• Android 8.1 OS with 2 GB RAM and 32 GB or 160 GB ROM
• Power Output: 4 x 45 W High Power Amplifier
• 3 PreOuts (3 V, Front / Rear / Subwoofer)
• CANBUS Integration
• Menu Language: English / German / French / Spanish / Portuguese / Dutch / Greek / Italian / Polish / Danish
• Camera Connection & Built-in Controls for Dynavision Multi-View Cameras / compatible with factory camera
• Camera Guideline Adjustment
• Rear-view Camera Display Automatic / Fast Boot-up
• 9 Band EQ
• Auto Dimmer
• Firmware Updatable
• Engine Start-Stop unaffected

Screen

• Display: 9-inch (LVDS)
• Resolution 1240 x 720 pixels (RGB)
• Capacitive touch screen
• Anti-reflection display
• Working system: TFT Active Matrix
• Active area: 196.608 (H) x 114.15 (V) mm

Z-Link

• Works with wireless Apple CarPlay and Apple Carplay
• Works with Android Auto
• Works with Smart Phone Mirroring

DAB+

• DAB/DAB+ build-in
• DAB + to DAB + Service Compatible
• Seamless Blending (automatic switching between DAB + and FM )
• SLS (Slideshow Service)
• DLS (Dynamic Label Service)
• Radio VIS (station cover on your radio display)
• Station memory: 15 program memory locations

Build-in BT

• Integrated BT module
• Specification standard: 3.0sands2.1+EDR
• -95dBm sensitivity, excellent anti-interference performance
• Supports low-power scanning function
• PBAP phonebook synchronization with 1000 entries
• Hands-free function with HFP
• Music streaming: A2DP (Advanced Audio Distribution Profile) compatible
• Individual profile connection: hands-free function and music streaming
• Phonebook: Automatic phonebook transfer
• Supports dashboard display for caller alerts
• Supports saving pairing information for multiple phones
• Device name display
• Call list: dialed number / received calls / missed calls
• Speech volume setting: adjustable for incoming and outgoing calls
• Microphone gain adjustable
• Display of the GSM signal strength
• Display of the battery charge level

GPS

• GPS antenna included
• GPS reception frequency 1,575.42 ± 1 MHz
• GPS reception sensitivity -165 dB max
• Positioning accuracy: 10 m, 2D RMS
• Data update rate: 1 HZ
• Recapture time: 0.1 s on average

USB

• USB specification: USB 2.0, fast charging support
• Audio playback (supported formats: APE/FLAC/M4A/MP3/WMA/WAV)
• Video playback (supported formats: MPEG-4/AVI/FLV/MPEG/MPG/DAT/VOB/MKV)
• Image browsing (supported formats: JPG/BMP/PNG/JPEG)
• Playback mode: random play / single song loop / all loop / folder loop
• Picture can be set as starting screen
• Sync song album images
• Draggable progress bar
• Video playback speed x2/ x4
• Memory playback progress
• Supports dashboard display of songs/composers
• Supports steering wheel to control up/down song/volume level
• File / Folder name search
• Supports up to 256 GB USB storage device

A2DP

• BT audio streaming from cell phone
• Display song title/lyrics/composer/vocalist
• Steering wheel can control up/down song/volume level
• Song title/lyrics can be displayed on the dashboard

Sound tuning

• Maximum output power: 4 x 45 W
• Adjustable subwoofer level
• Subwoofer, Bass, Middle, Treble phase selectable
• Equalizer Presets: Pop, Rock, Classical
• 9-band parametric equalizer
• Fader and balance
• Digital time correction

Radio

• FM frequency range: 87.5 – 108.0 MHz
• AM frequency range: 530 – 1710 KHZ
• FM Utility Sensitivity: 5-6 db
• FM Stop Sensitivity: 22 db
• AM stop sensitivity: 21 db
• With left and right stereo channels
• Signal to noise ratio: 56 db
• Manual station storage for 15 stations
• RDS functions: AF, TA, broadcast text
• Automatic station tracking function
• High Cut high frequency attenuation function
• Support for changing FM/AM memory station pictures
• Optional radio antenna power on/off

Navigation

• Maps: Full European map with 46 countries
• Menu languages: 28 languages
• Advanced address search
• Postcode search
• Free search
• Search with word pieces
• Extended POI functions
• Smart routes: use of historical traffic data
• Fast route calculation
• Extended route planning
• Map display: 2D top view, 2D north orientation, 3D
• 3D city maps: 3D building views
• Display of elevation profiles
• 3D motorway junctions: 3D display of motorway junctions
• Tunnel mode
• Highway mode
• Navi Mix mode
• Free map update after the first registration on naviextras.com
