System 4xReiss RS-M102VB Ampkit

.

Features of speakers:

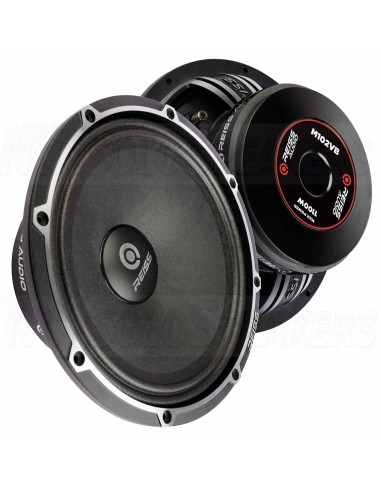

Reiss RS-M102VB – 10" Midbass 550W RMS with power, control, and precision

Reiss RS-M102VB is a 10-inch midbass driver engineered to deliver massive performance with both strength and accuracy. It combines high power handling with fine detail reproduction and fast response – perfect for systems where the midbass must be both powerful and controlled. With its robust construction and precise mechanical characteristics, the RS-M102VB is built to perform at top level regardless of sound pressure or installation type.

.

Raw power and efficiency

With a power handling of 550W RMS and up to 1100W max, the RS-M102VB can handle extreme sound levels without losing control. A 98 dB sensitivity ensures high efficiency even with moderate amplification, while the wide frequency range of 55–8000 Hz makes the driver highly versatile in both 2-way and 3-way systems.

.

Built for high performance

Cone: Reinforced pulp paper cone for natural tone and stiffness

Surround: Treated cloth surround for controlled movement and long lifespan

Basket: Cast aluminum basket for maximum stability and heat dissipation

Magnet: Powerful ferrite magnet (Ø 170 mm) with high energy density for precise control

Voice coil: 60.6 mm TSV wire for high temperature resistance and efficient cooling

.

Designed for real-world performance

The RS-M102VB is built to deliver precision and endurance even under heavy load. With a resonance frequency (Fs) of 73.15 Hz and a QTS value of 0.269, the driver has a fast, dynamic character with tight reproduction. The well-balanced design ensures bass that feels both powerful and controlled – ideal for those who want clear punch and musical balance.

With an outer diameter of 268 mm, a mounting depth of 98 mm, and a weight of 5.3 kg, the RS-M102VB is a robust midbass ready for serious audio builds. A natural choice for enthusiasts and competition builders who demand power, precision, and durability in one package.

.

Technical data

• Woofer size 10"
• Power handling RMS 550W
• Power handling MAX 1100W
• Frequency range 55~8000 hz
• Impedance 4 Ohm
• FS 73.153 Hz
• RE 3.2 Ohm
• QES 0.282
• QMS 5.873
• QTS 0.269
• Vas 30.290L
• Voice coil size Ø 60.6 mm
• Magnet size Ø 170 mm
• Sensitivity 98 dB
• CMS 156.110μM/N
• MMS 30.321g
• SD 369.65 cm2
• Outer diameter Ø 268 mm
• Installation depth 98 mm
• Mounting hole Ø 237 mm
• Weight 5.3 kg

.

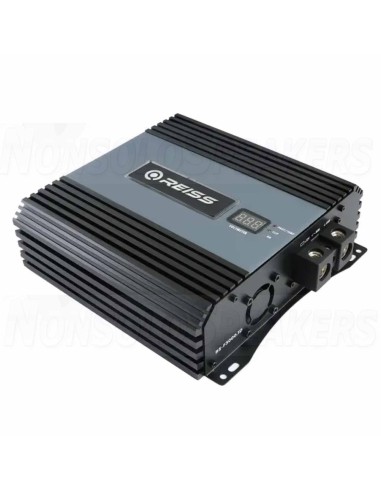

FEATURES OF AMPLIFIER

• Number of channels 1 Channel
• Amplifier class Class D
• Power into 1 ohm RMS 3000 W
• Power into 2 ohm RMS 1600 W
• Power into 4 ohm RMS 950 W
• Frequency range 10 - 20,000 Hz
• High pass filter 10-100 Hz
• Low pass filter 50 - 20,000 Hz
• Bass boost 0-12 dB 30-70 Hz
• Input sensitivity 0.4-3.6V
• Signal noise 90dB
• THD < 0.5%
• Measured power 3109W @ 1 Ohm
