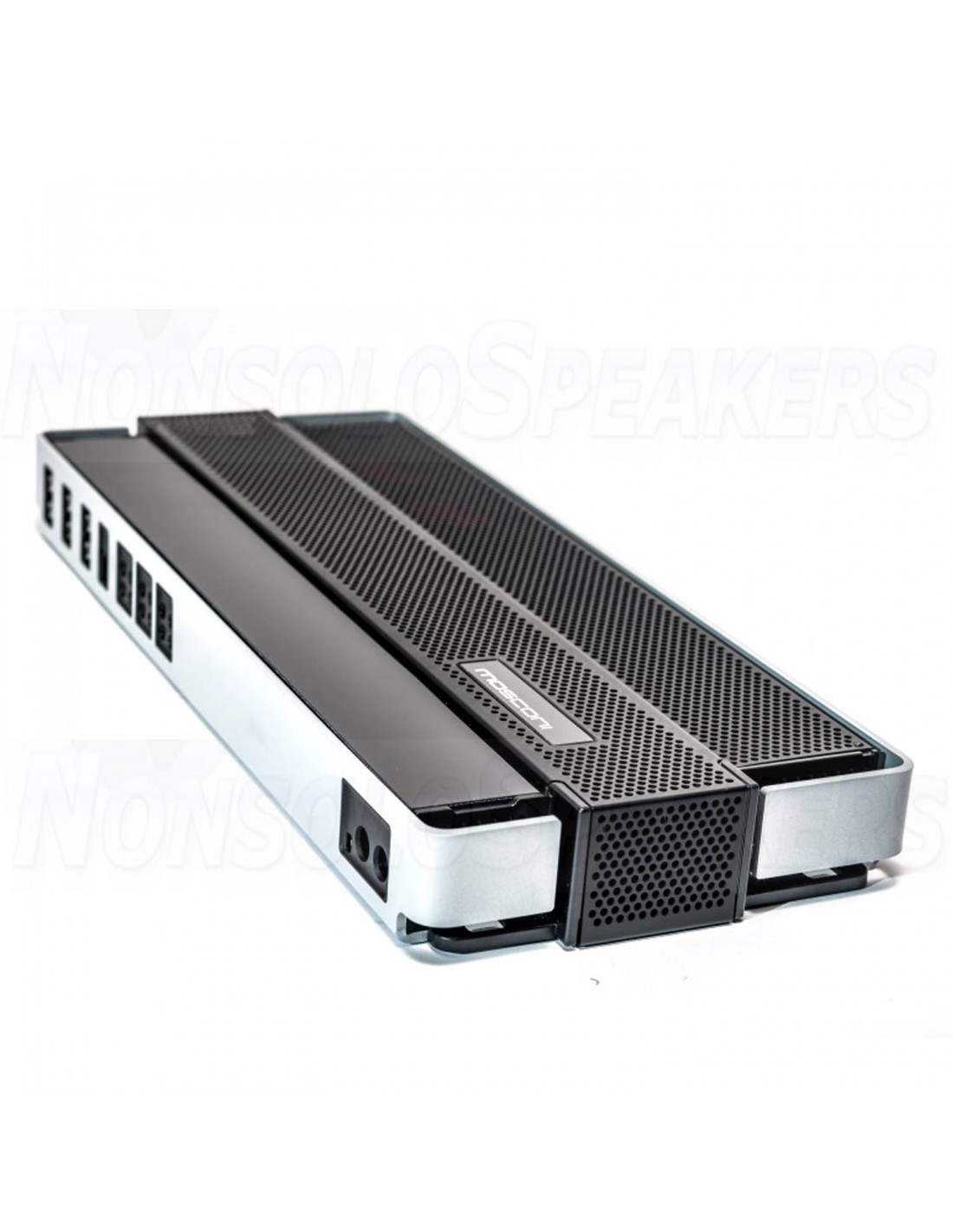

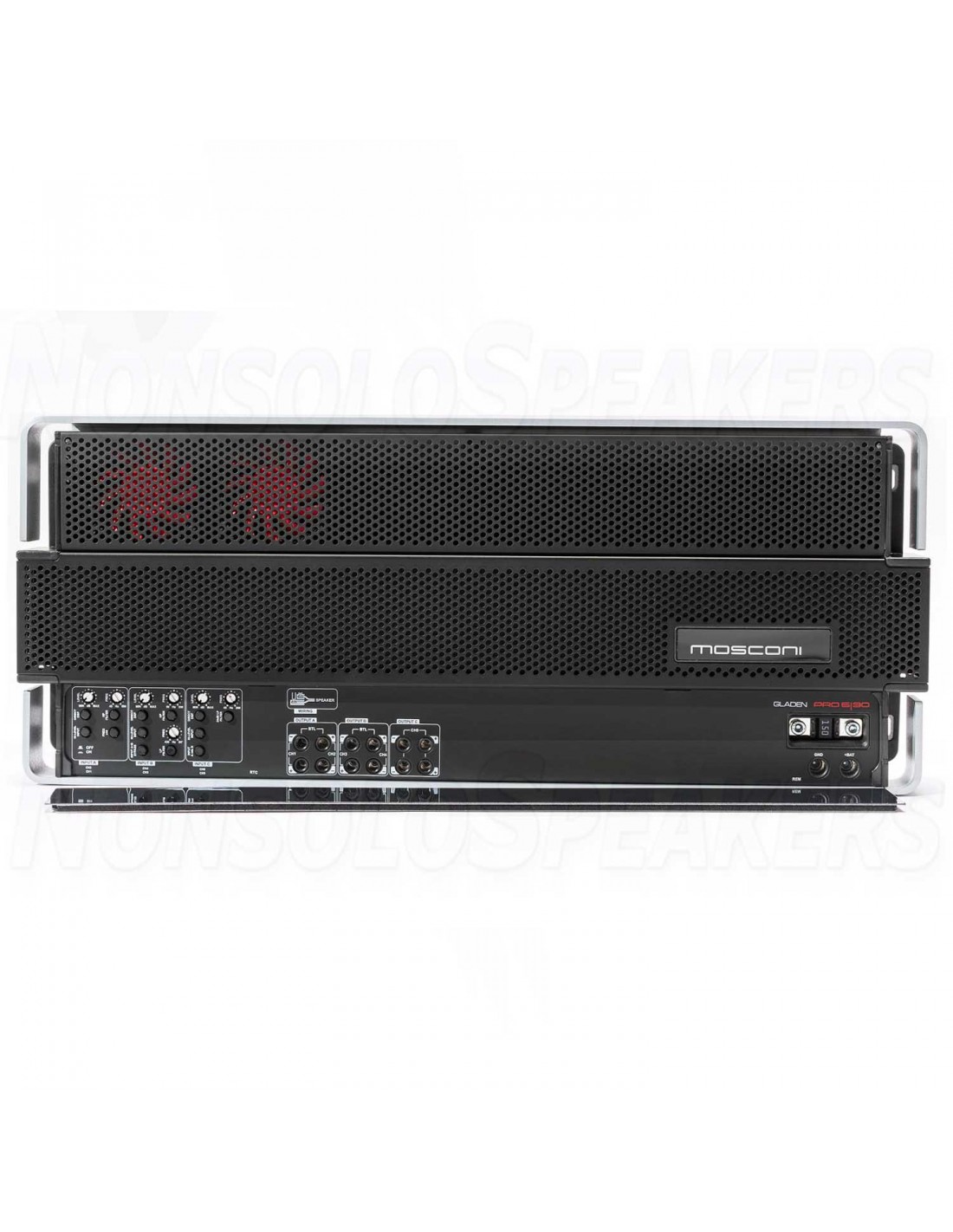

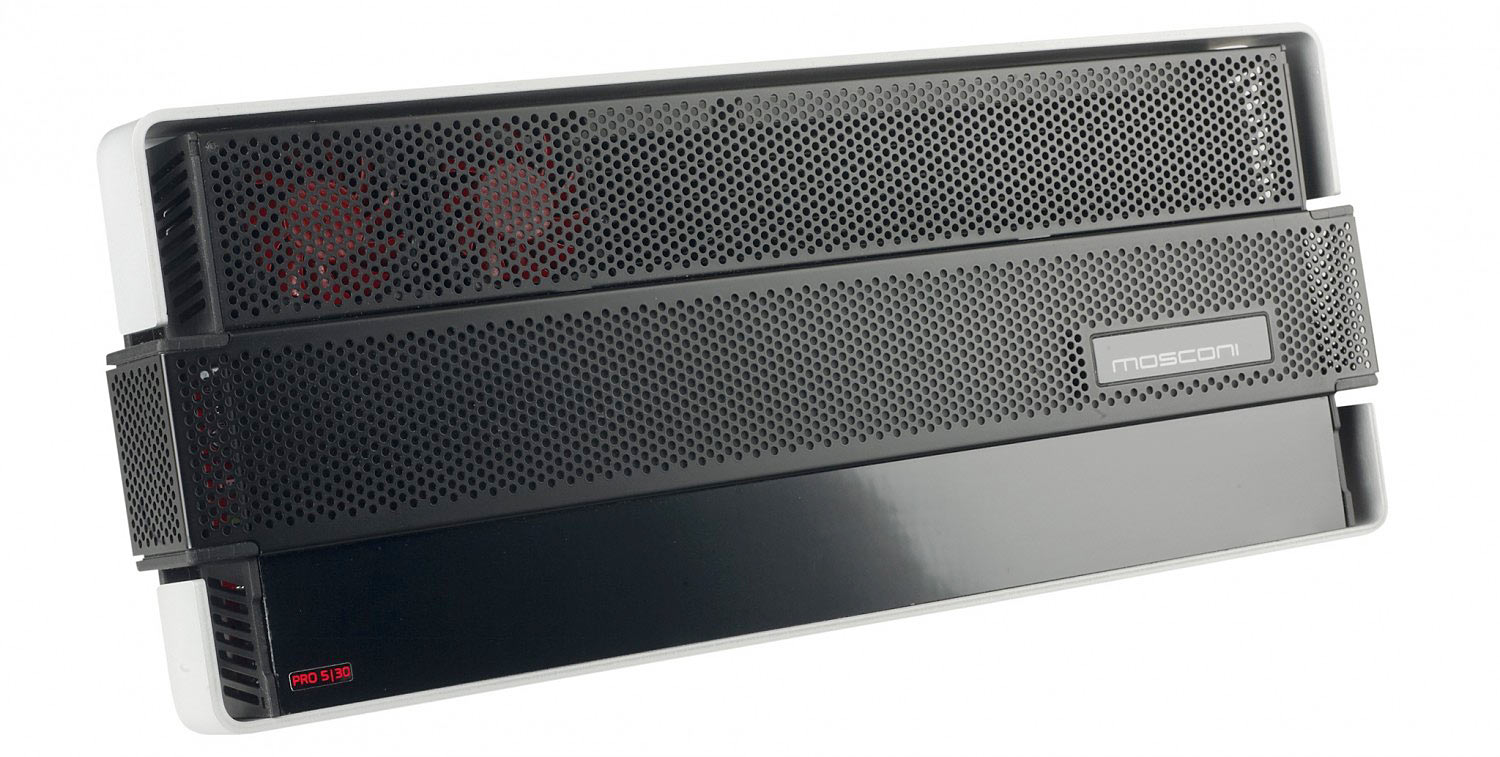

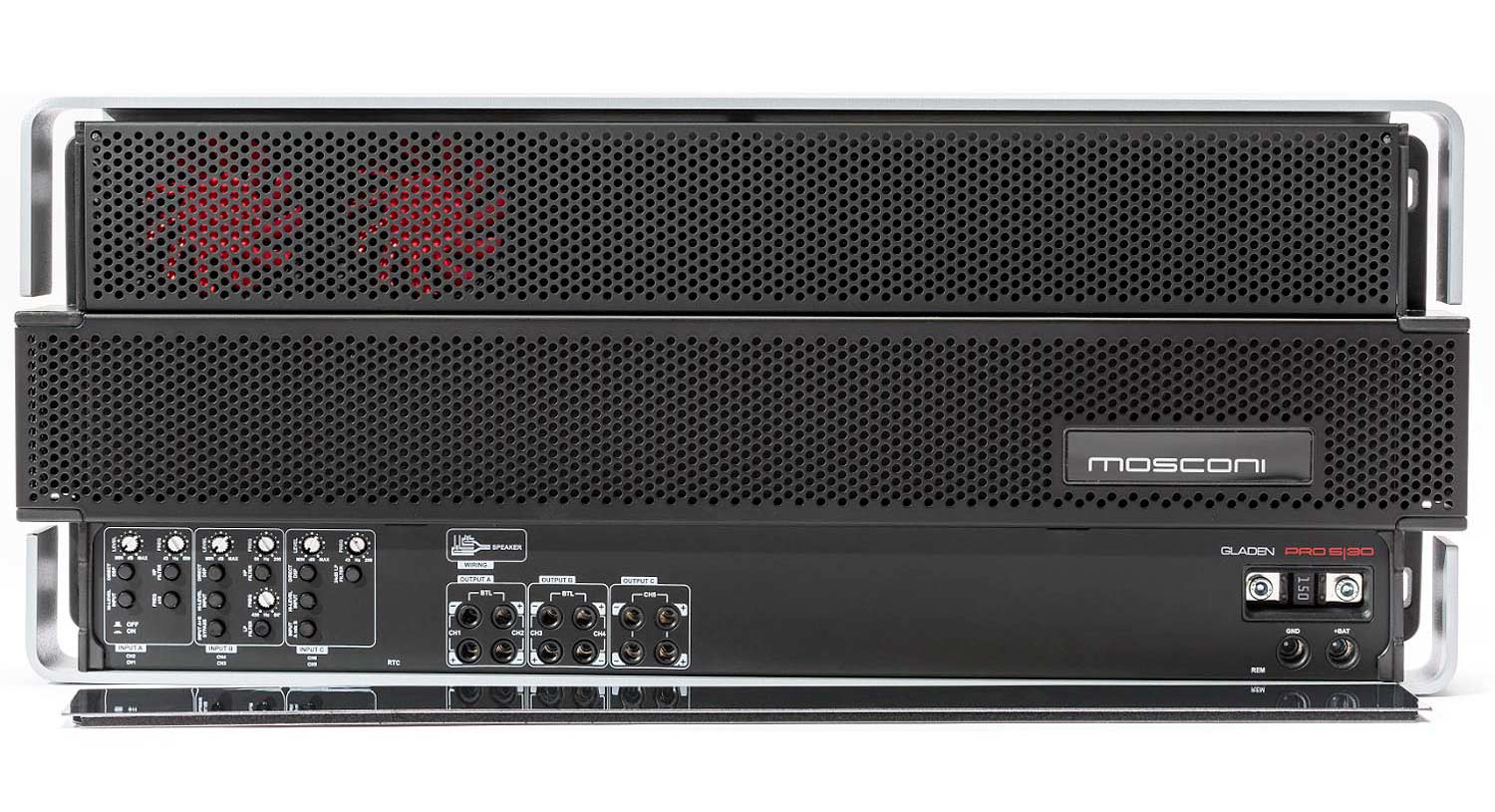

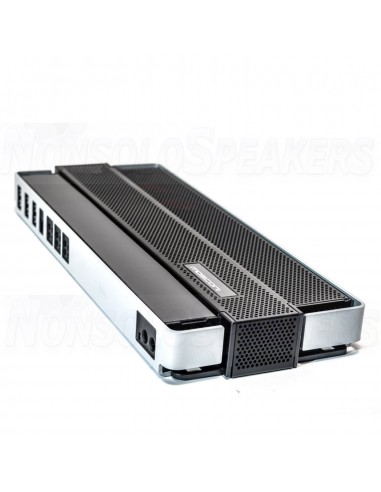

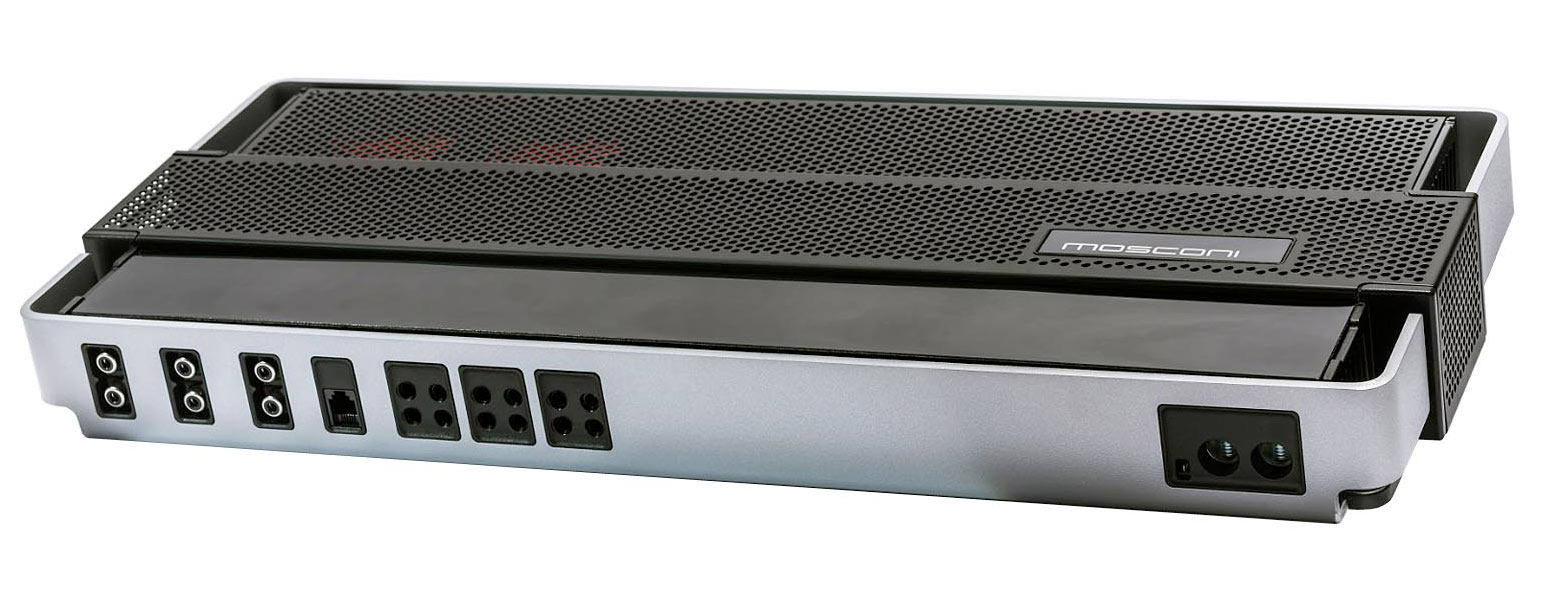

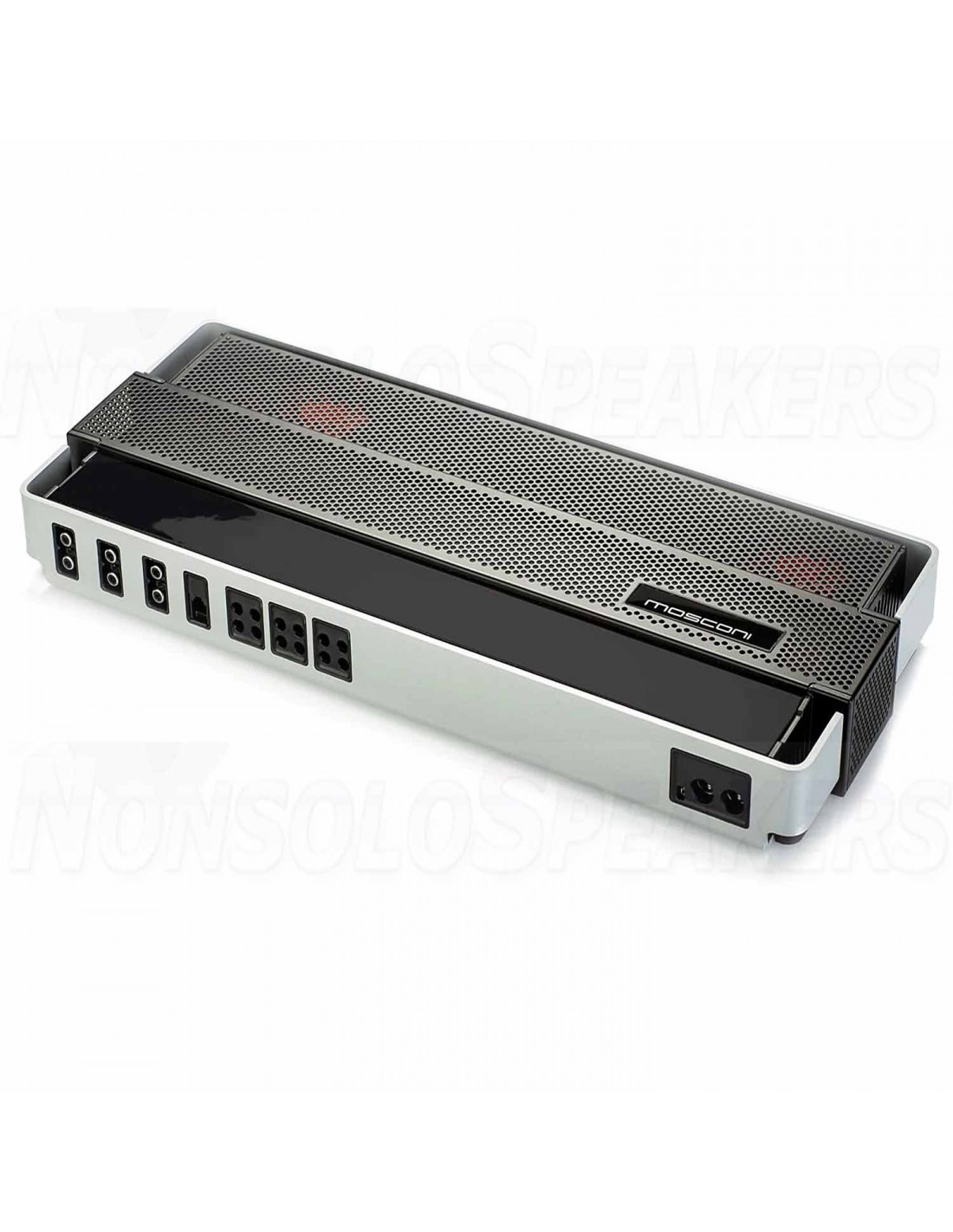

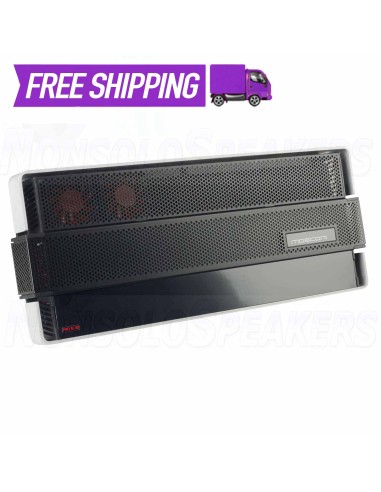

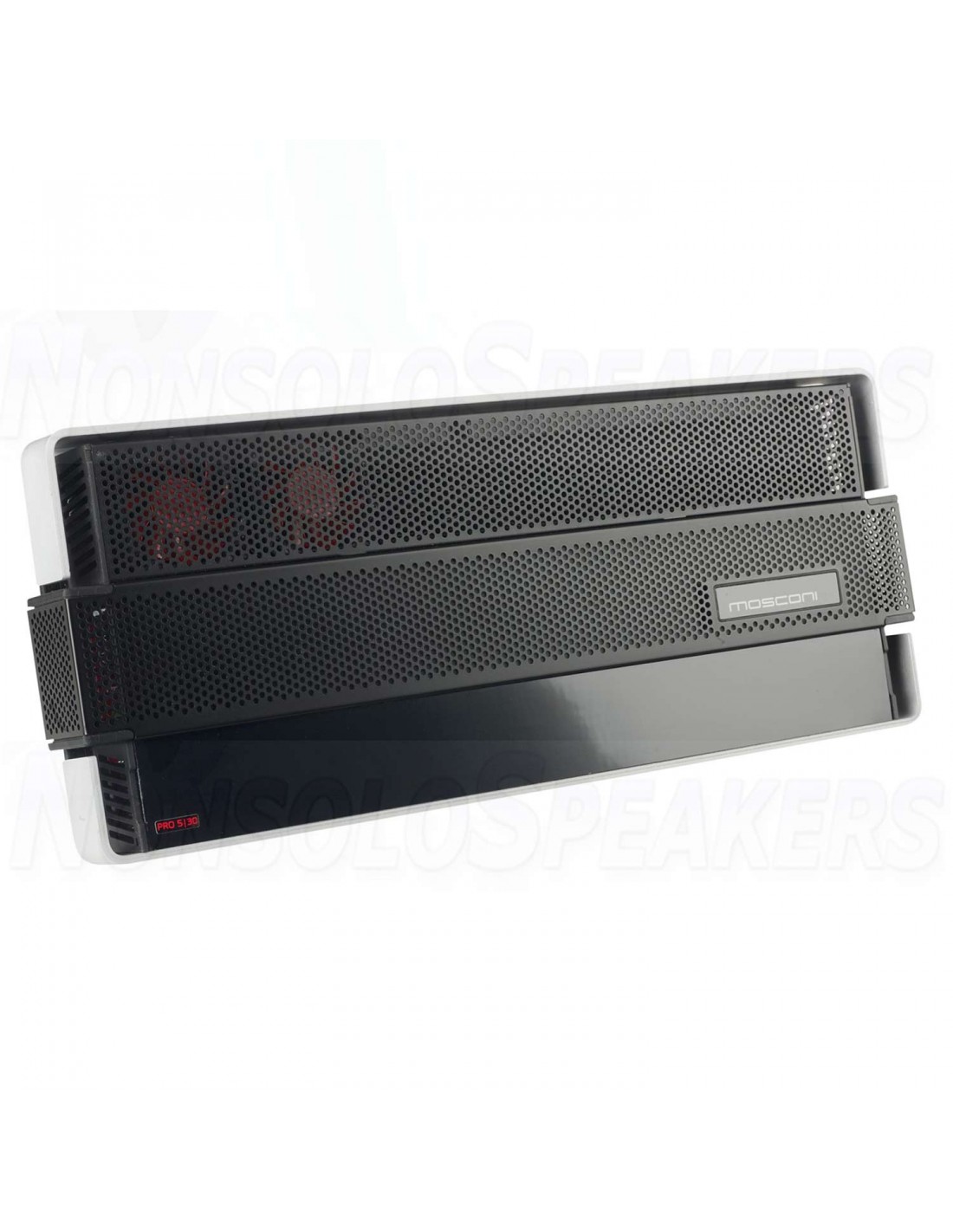

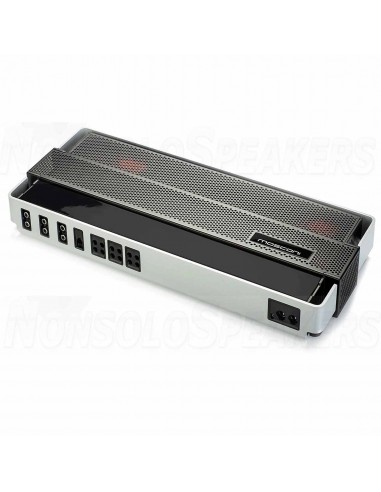

Mosconi PRO 5/30 5-channel hybrid amplifier 4 ohms

The love of detail, perfection and music prompted Henning Gladen to develop loudspeaker systems and crossovers as early as the 1990s. In 1997 the GLADEN brand was launched. Today, GLADEN AUDIO makes use of technologies that are also used in aviation or automotive engineering, such as FEM calculations. But even with many technical details, GLADEN AUDIO is breaking new ground with its products - with one goal: the perfect sound experience!

-

Mosconi

90% MADE IN ITALY

MOSCONI G_AS, GLADEN_ONE and A-Class amplifiers are completely designed, developed and produced in Italy.

More than this, MOS has all production facilities within a radius of 100 kilometers and can therefore guarantee optimal control over every single production step of the manufacturing process.

This decision, which runs contrary to the usual trend of other competitors in the market, was made in order to achieve production at the highest level paired with optimal quality control of the individual work steps.

-

MOSCONI GLADEN PRO LINE - NEXT LEVEL sound quality

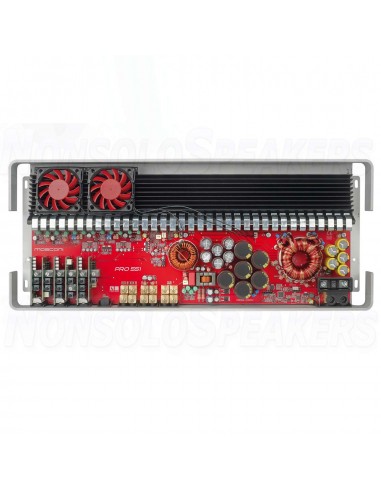

Very compact, analog full-Mosfet amplifier / 5 | 30, channel 5, Classs D.

Either low or high level signal input!

Autosense in high level mode (no remote signal required (BTL OEM amplifier)

DDSP - Direct DSP Mode

Temperature controlled fan

Plug and Play wiring harnesses (optional)

-

Made in Italy

“In general, both PRO 4 | 10 and PRO 5 | 30 shine with their extremely dynamic music reproduction. Keystrokes from keyboard and string instruments are passed on to the listener unfiltered, and drums make faces grinning, especially at higher listening volumes.

With all this, the PRO amps never forget the big picture, the flow of music is always nice and the amplifiers play wonderfully musically. This is a performance at an absolutely high-end level, with which the new Mosconis are absolutely competitive. "

The PRO 5 | 30 comes with five amplifier channels - the first stereo pair delivers 95 watts, the second 185, while the last channel uses a class D power amplifier to pump massive 660/1030 watts (4/2 ohms) into the subwoofer. The integration of separate active crossovers for all channels guarantees maximum flexibility; alternatively, all switches can be bypassed in order to adapt the input parameters for cooperation with Mosconi DSPs.

-

Technical specifications:

• Amplifier class: Class A / B (1-4), D (5)
• Power 4 Ohm W RMS: 2 x 85 Class A/B - 2 x 170 Class A/B - 1 x 600 Class D
• Frequency response: 5 - 135,000 Hz (1 + 2), 5 - 145 Hz (3 + 4), 5 - 1,750 H7 (5)
• Low pass filter: 430 - 5,000 Hz (3 + 4), 43 - 200 Hz (5)
• High pass filter: 43 - 500 Hz (1 + 2), 50 - 200 Hz (3 + 4)
• Bandpass filter: -
• Subsonic filter: -
• Bass boost: -
• Phase shift: -
• Remote Control: -
• Fuse: 150 A.
• Dimensions (L x W x H): 50.0 x 20.5 x 5.5 cm

.

.

.

.

.

.

.

.

.

.

.

.
