The Block ABC
We are the blocks - streaming at the highest level.
Via Internet radio, Spotify Connect ©, Bluetooth or via USB, we play your titles in the highest quality.
Equipped with the multiroom function, you can also stream your CD from the living room with us, for example, from one of our multifunction devices CVR-100 + MKII, CVR-10 or SR-100.
With our control buttons you can easily and quickly not only regulate the volume, but also use the station memory to easily select and change your Internet radio station.
We can be controlled via the UNDOK app, on the device or via the optionally available remote control.

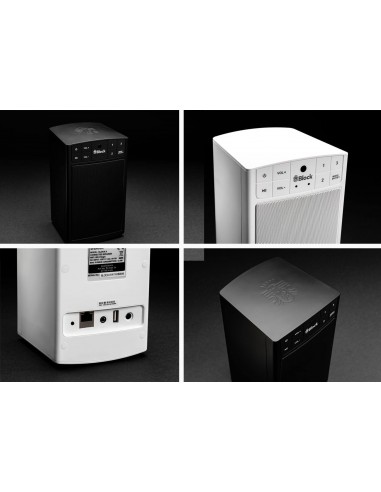

The Block A - great sound in a small case
BLOCK A
Great sound in a small case!
I am Block A, the most compact of the ABC family.
Whoever thinks that I do not sound so good, underestimates me and my 15 watts of power but tremendously.
I combine all the functions that my big brothers have, like internet radio, streaming and Spotify Connect.
You can also play music from your phone via Bluetooth, music from one of your home devices (computer, NAS, media server) via Wi-Fi or music stored on a USB stick on me.
If there is no other way, I even have an AUX socket, which can be connected to another device via mini-jack.
With my compact dimensions, I do not take away too much space on your dessert, desk or beach chair
Specifications:
Analogue Inputs:
3.5mm AUX IN Stereo-Jack
Speaker:
BLOCK A: 1x 15 Watt | Block B: 1x 18 Watt | BLOCK C: 2x 4.5 Watt & 1x 35 Watt
Digital inputs:
USB
Internetradio:
more than 30,000 stations worldwide
Station presets:
10 for internet on our optional remote, 3 direktly on the device.
File formats:
AAC, AAC +, MP3, WAV, WMA, FLAC
Streaming:
Bluetooth | DLNA | UPnP with "UNDOK" APP | Spotify® Connect-Ready
Network:
LAN, WiFi 2.4 & 5 GHz, Bluetooth
"Standby" power consumption:
BLOCK A: <2 Watts | Block B: <2 Watt | BLOCK C: <2 Watt
Power consumption "Operating":
BLOCK A: max. 18 Watt | Block B: max. 36 Watt | BLOCK C: max. 44 Watt
Dimensions W | H | D:
BLOCK A: 120 x 203 x 121 mm | Block B: 290 x 125 x 120 mm | BLOCK C: 355 x 220 x 135 mm
Weight (kg):
BLOCK A: 1.15 kg | Block B: 1.8 kg | BLOCK C: 2.8 kg
Multiroom funktion:
Up to 5 devices
Features:
Operating the device with keys, remote optional
