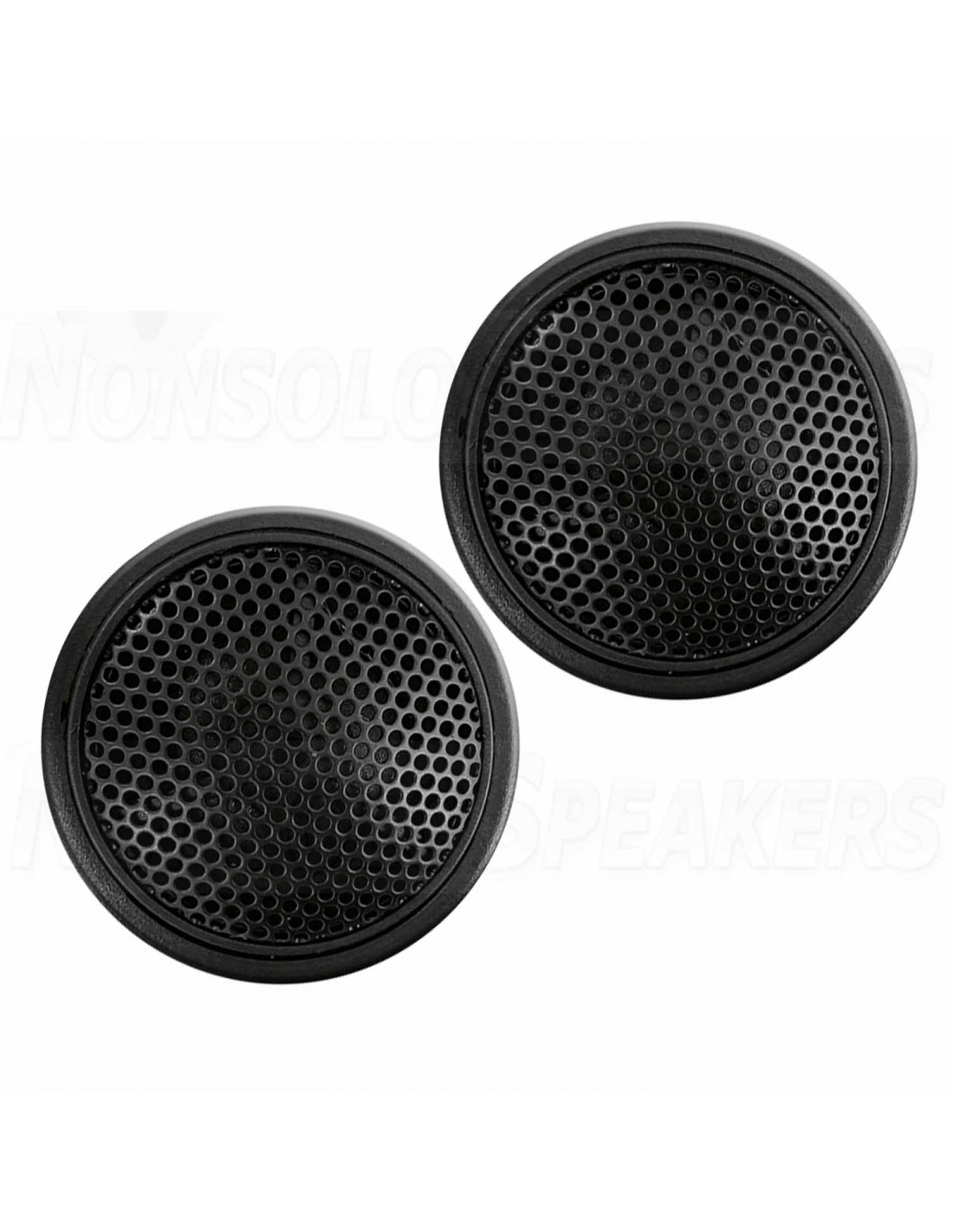

Phoenix Gold ZX1TC – 1-Inch 25mm Soft dome tweeter with filter 40 Watt Peak

The ZX1TC is a 1-Inch/25mm Soft dome Audio Tweeter with a filter. Sold as a pair these high-quality tweeters are built to work with a 2-way or 3-way system. The ZX1TC is the perfect high-quality tweeter with a soft sound.

The ZX1TC comes with a 12dB cable filter set for a 4000Hz high pass to match the ZX65C perfectly when paired with that configuration. The tweeter is a 25mm soft dome with a neodymium magnet. The ZX1TC tweeter will handle 20W RMS and 40W Max. The filter comes with 2 level settings 0 / -2dB as well as a complete set of mounting accessories for recessed or surface mounting.

.

Technical Specifications:

• Speaker Type: Soft Dome Tweeter
• Speaker Size: 1″ (25mm)
• Impedance: 4Ω
• Frequency Response: 3000Hz – 20kHz
• Power Handling (RMS): 20W
• Power Handling (MAX): 40W • Sensitivity: 91dB (1W/1m)
• Fs: 1400Hz
• Neodymium magnet
• Tweeter level adjustment (0dB, -2dB)
• 4000Hz High-pass filter (12dB/Oct) for use in 2-way or 3-way system
• Outer Diameter Tweeter: 43mm
• Mounting Diameter Tweeter Housing: 49mm
• Tweeter Depth: 20mm
• Mounting Depth Tweeter Housing: 20mm
• Sold as Pair
