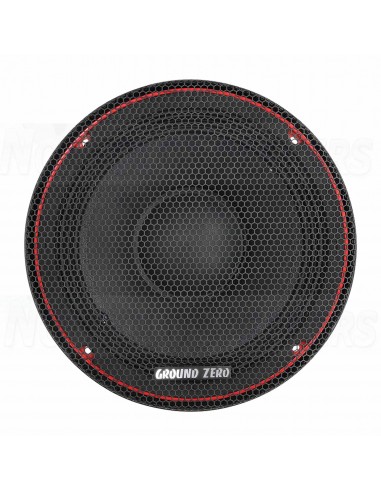

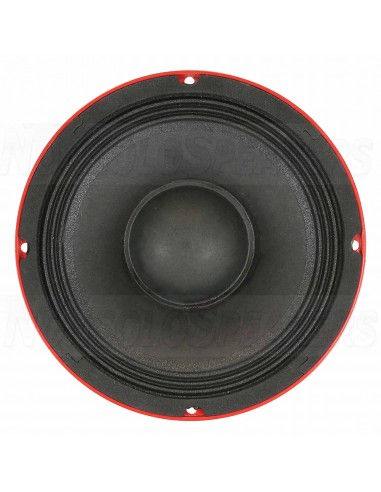

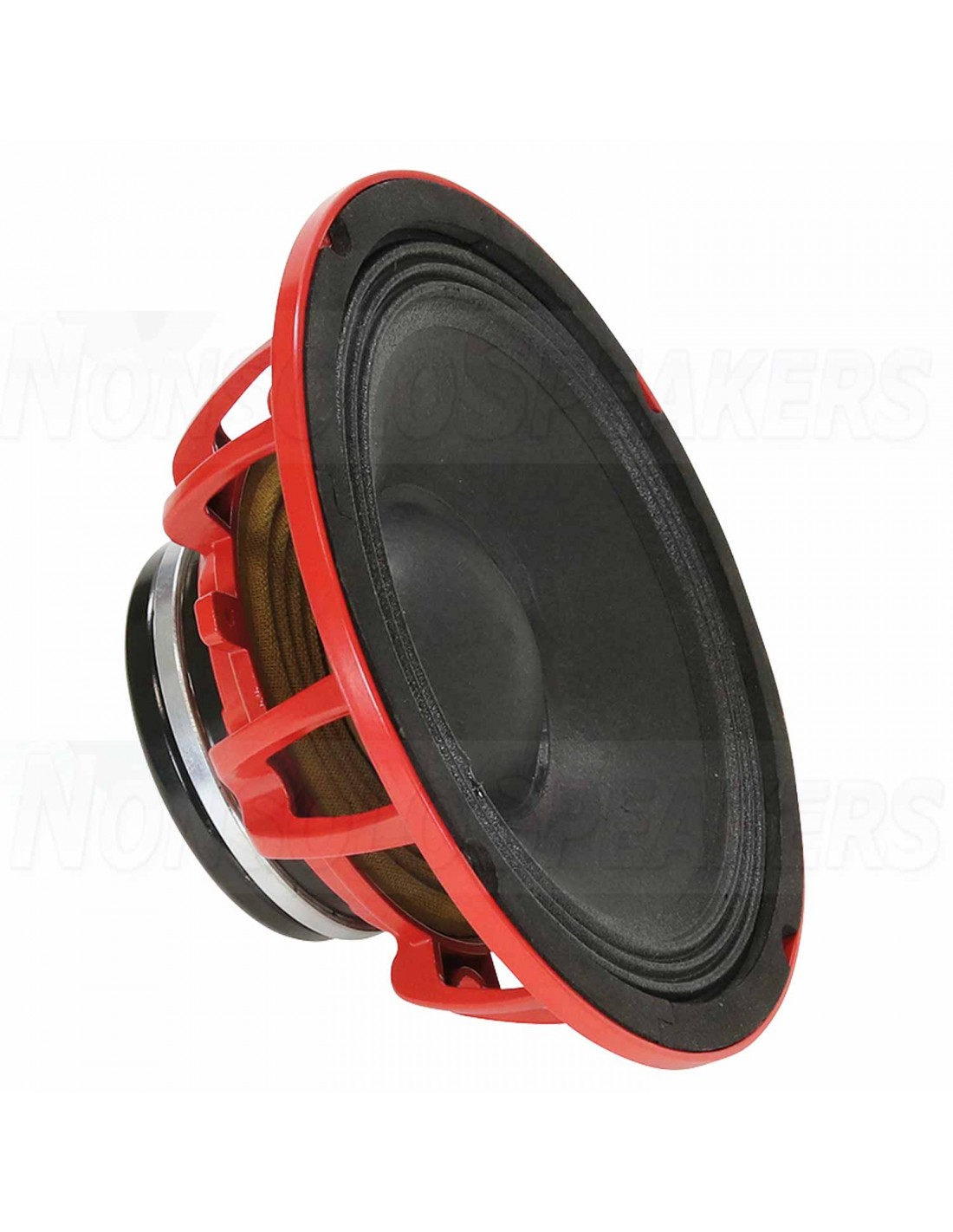

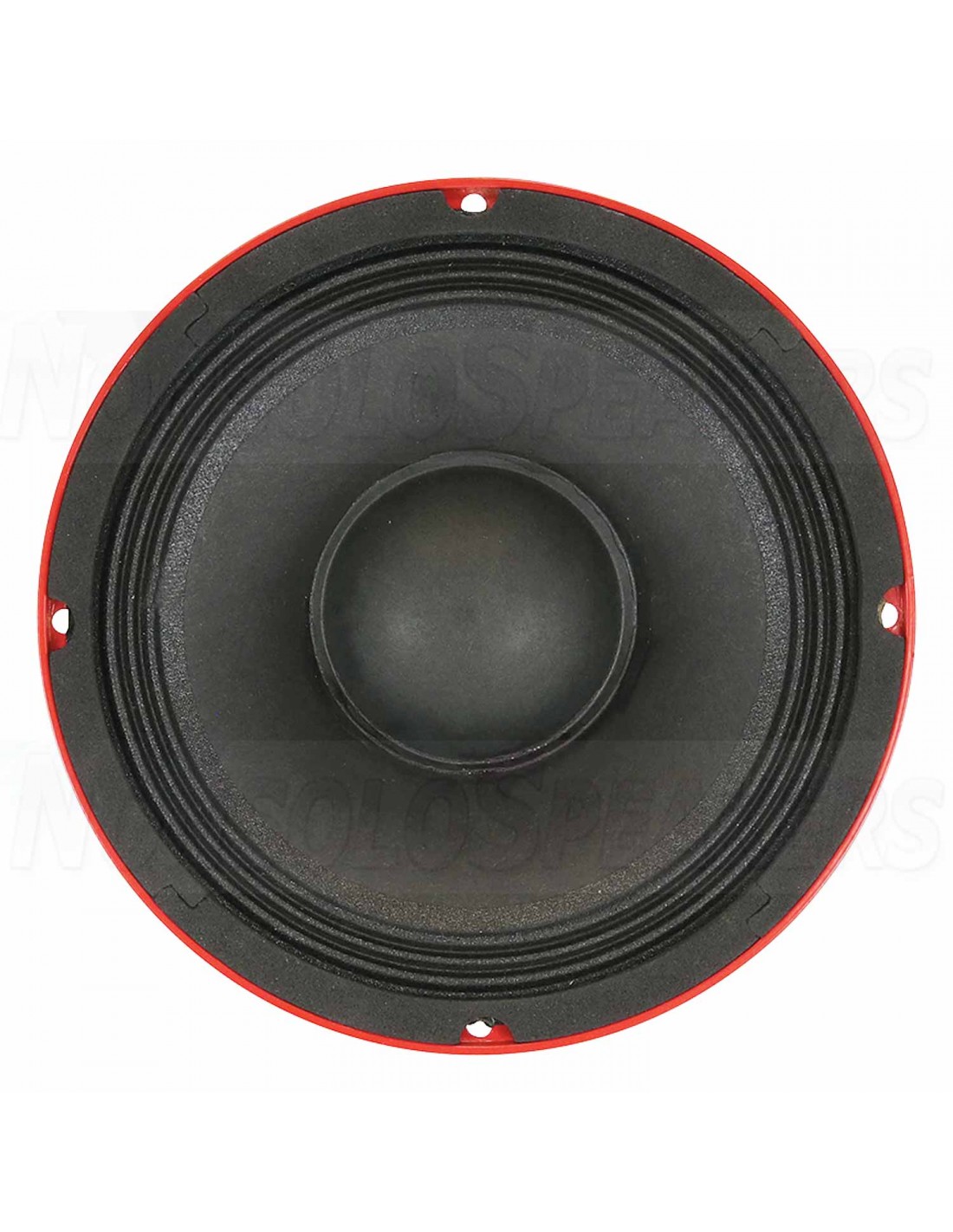

GZCM 8.0N-PROX 200 mm / 8″ high power midrange

.

Description

8″ high end SPL midrange speaker with neodymium motor and aluminum cast basket

63 mm / 2.5″ CCA voice coil

Fiber reinforced paper cone

Neodymium motor

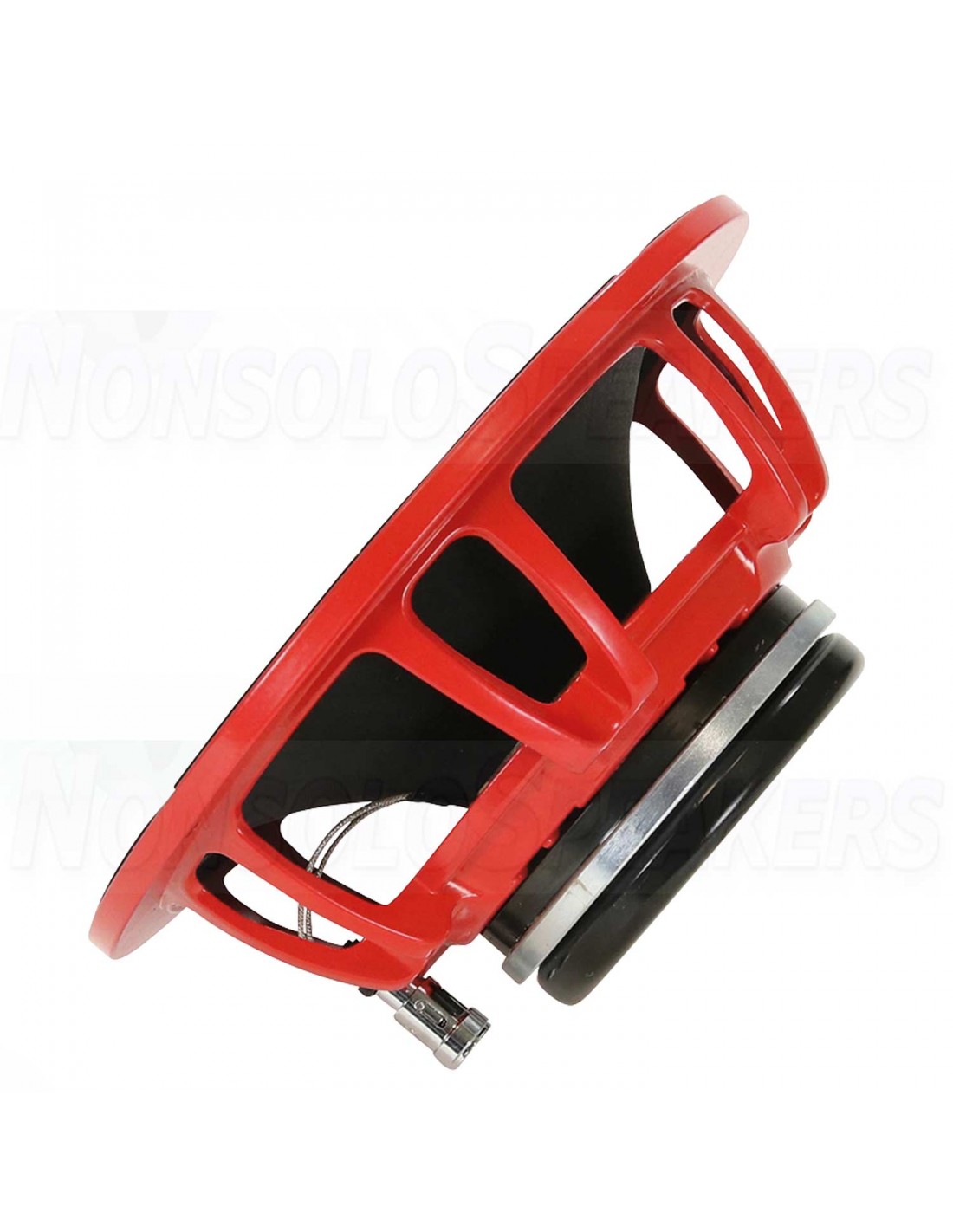

Aluminum cast basket

Aluminum phase plug

water repellend cone

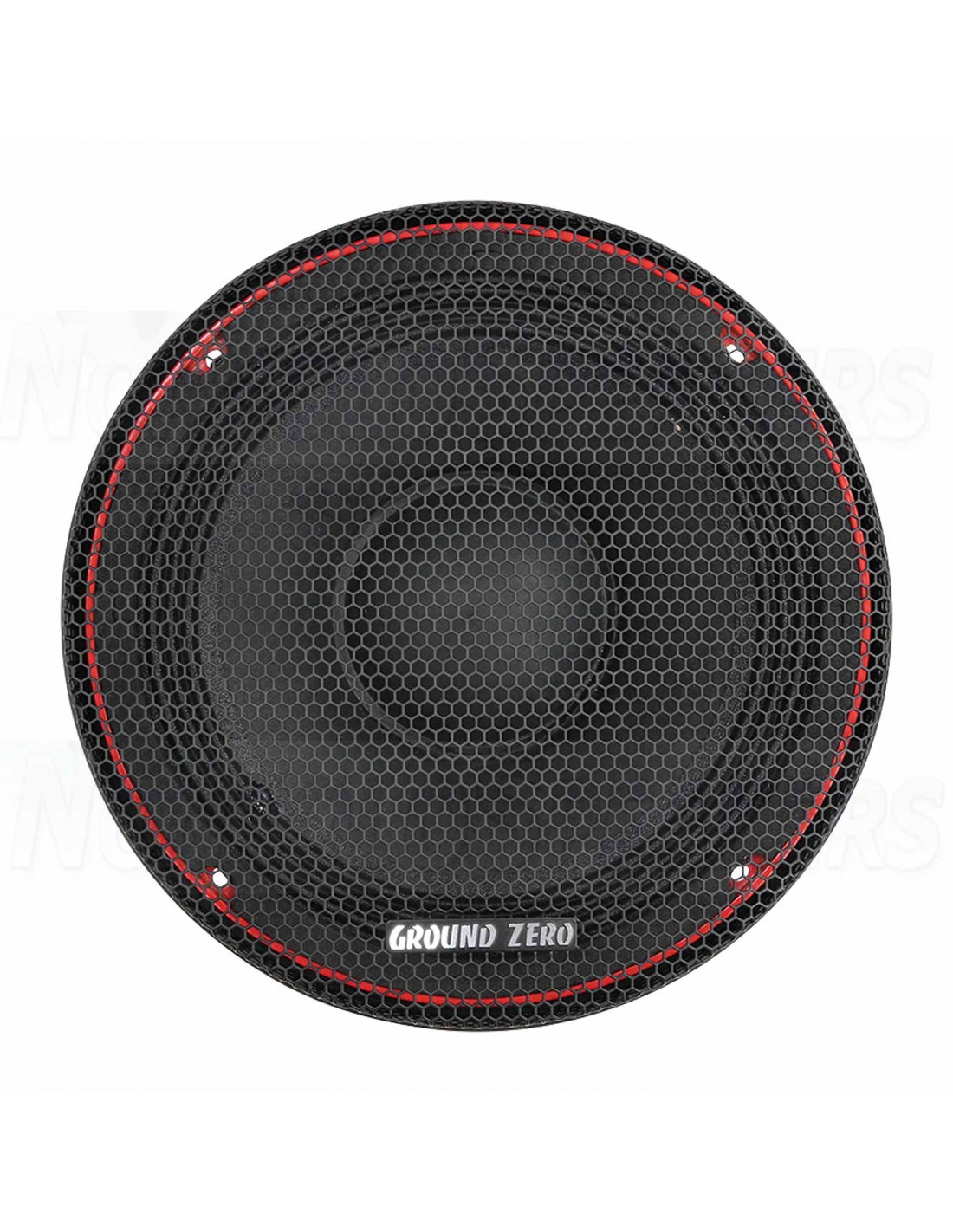

Incl. protection grill

Push terminal

1 piece / package

.

Specifications

Speaker diameter: 200 mm / 8”

Impedance 4 Ohm

Frequency response: 120 Hz – 7 kHz

Power handling (RMS) 300 Watt / Watts

Power handling (max) 500 Watt / Watts

Sensitivity: 98 dB

Resonance frequency: 90 Hz

Vas: 10.1 L / 0.36 cu.ft.

Qms: 10.21

Qes: 0.22

Qts: 0.21

BL: 13.1 N/A

Re: 3.4 Ohm / ohms

Le: 0.32 mH

Mms: 19.8 g

Cms: 0.16 mm/N

Xmax (p2p) 12 mm / 0.47“

Voice coil: 63 mm / 2.5”

Magnet: 105 mm / 4.1”

Neodym / neodymium

Outer diameter: 210 mm / 8.27”

Mounting cutout: 181 mm / 7.12”

Mounting depth: 82 mm / 3.23”
