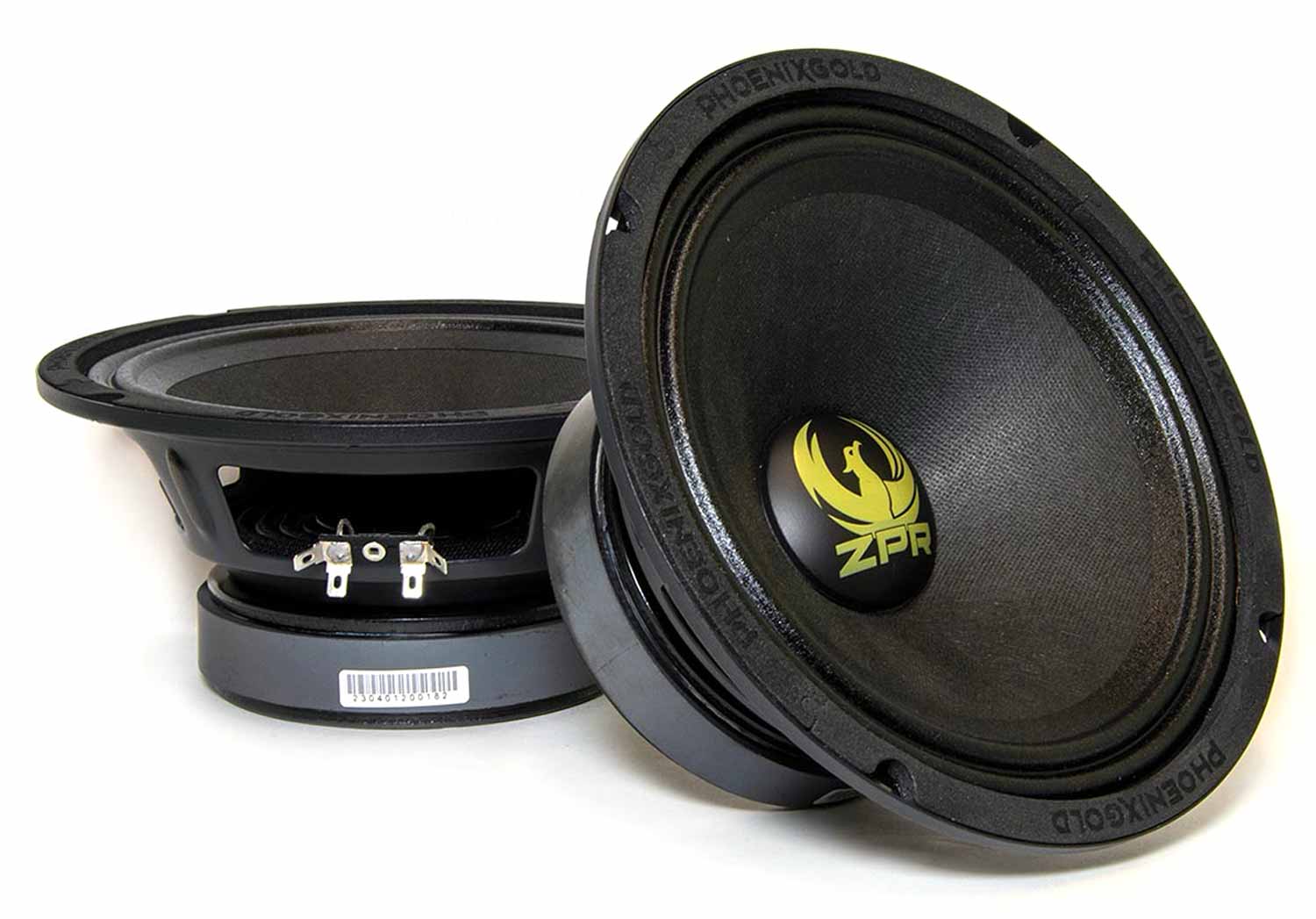

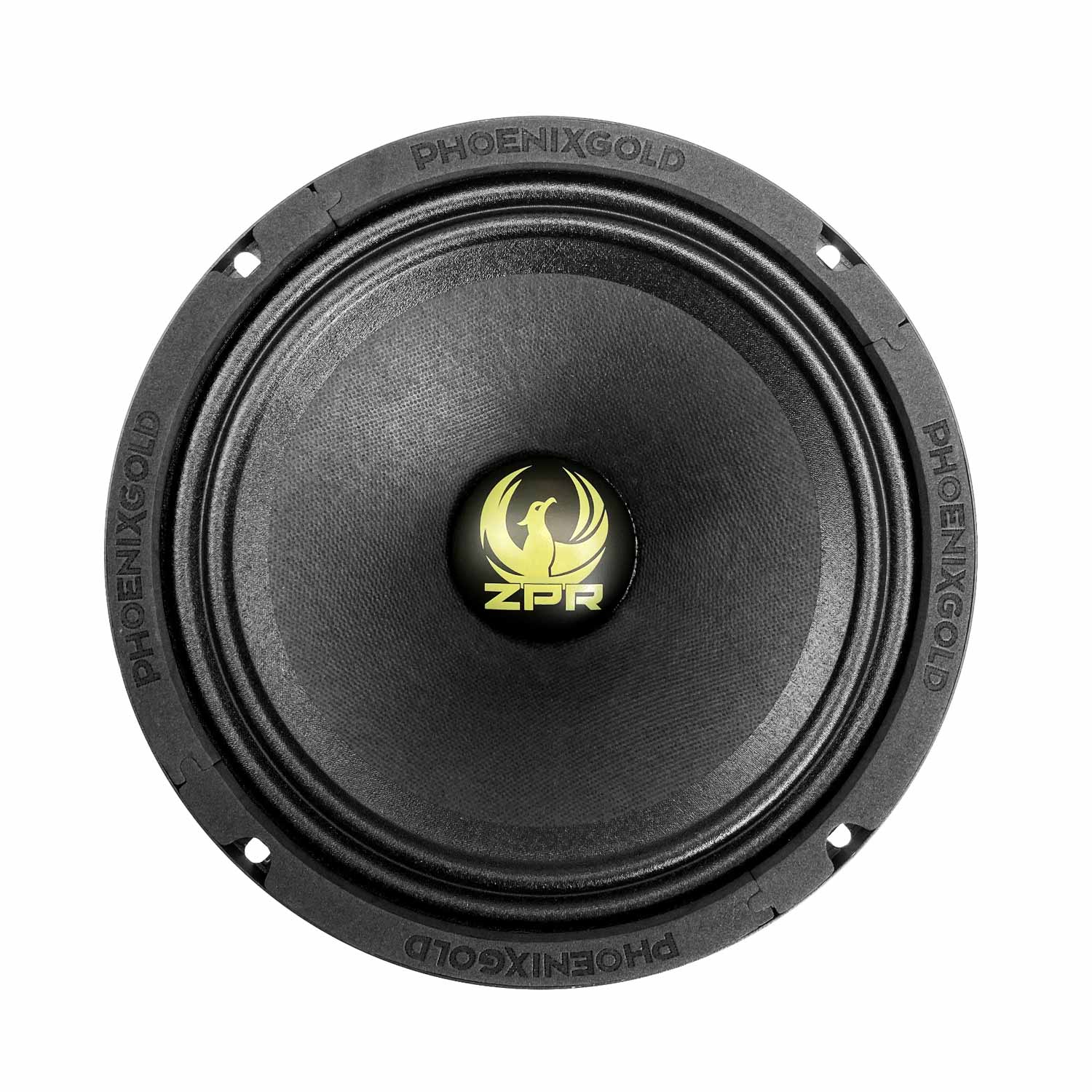

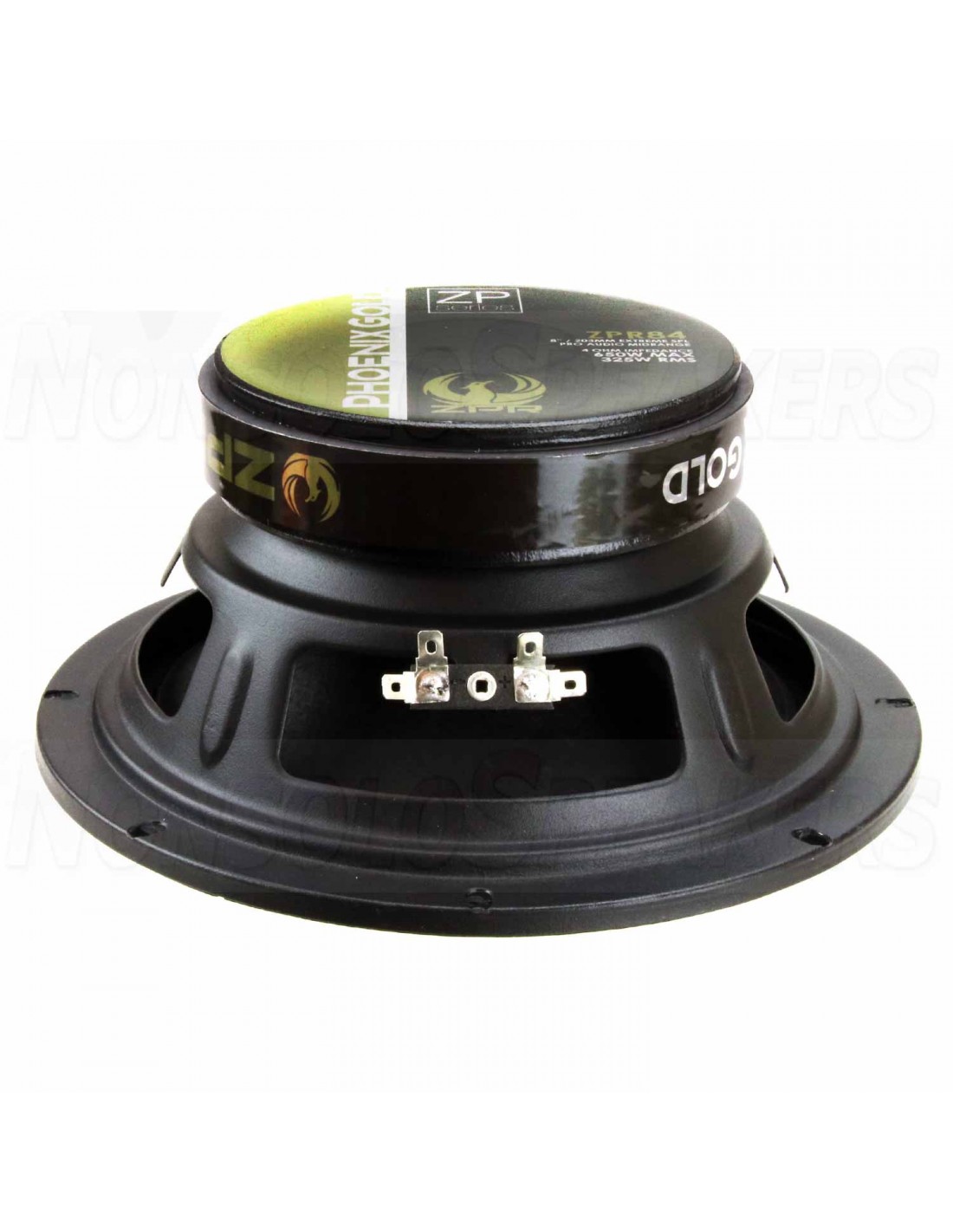

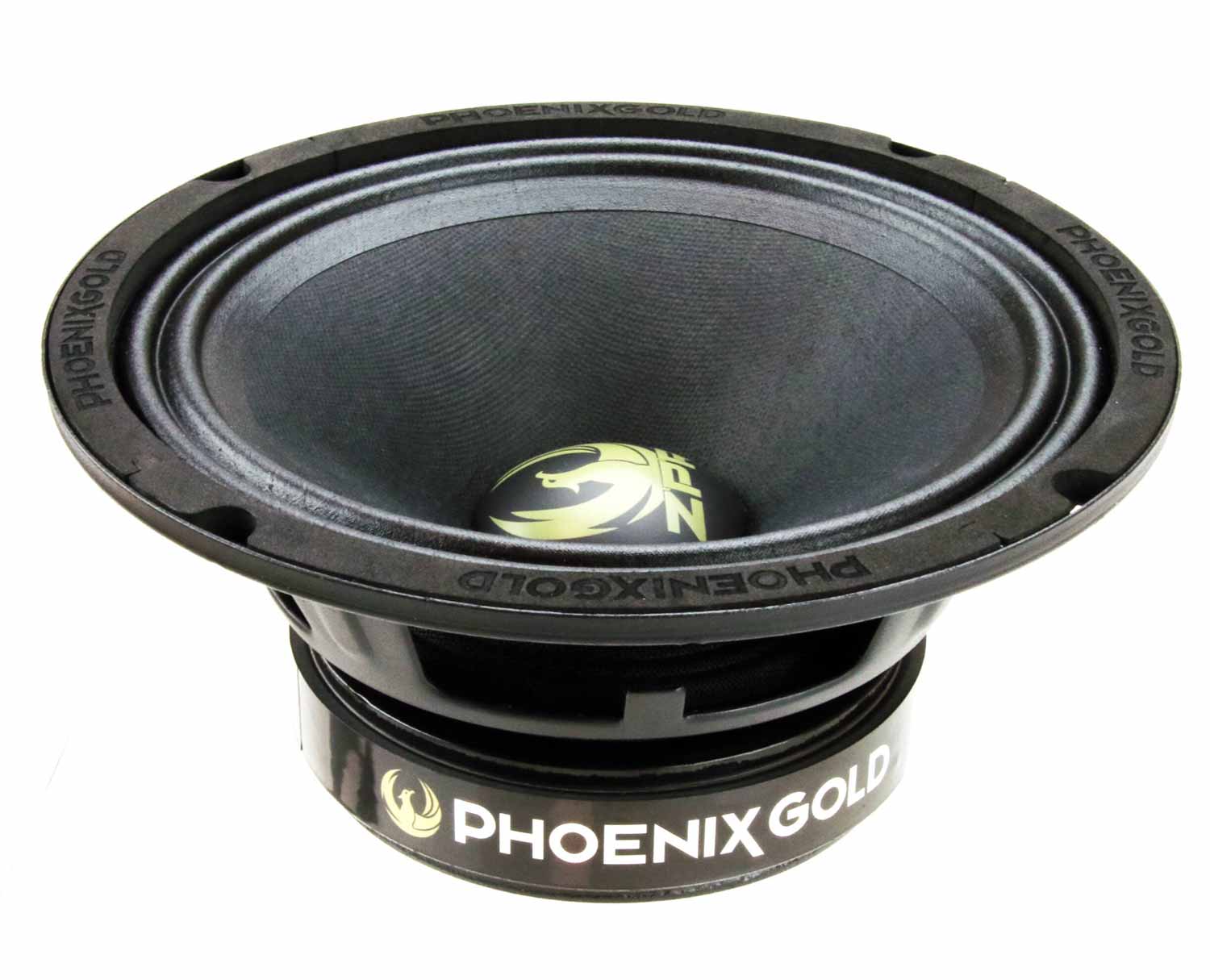

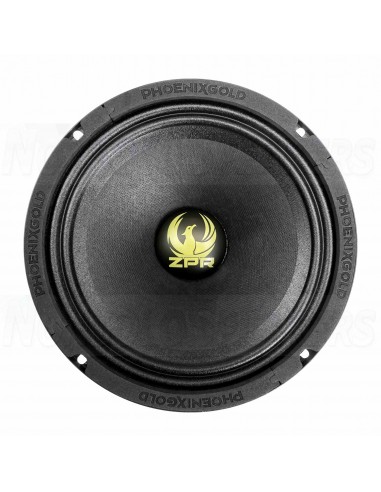

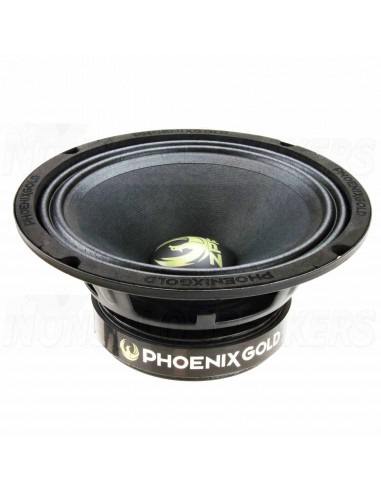

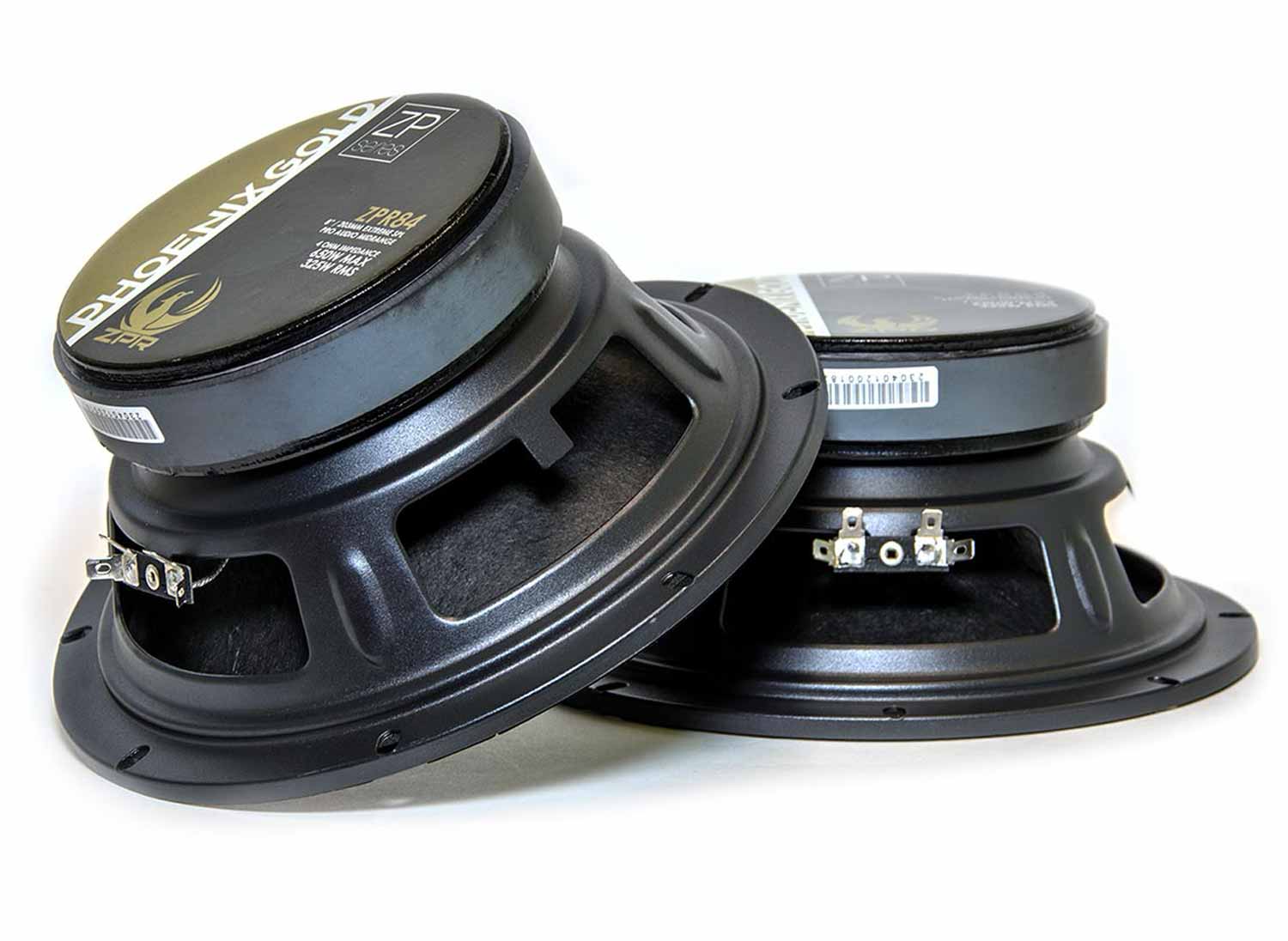

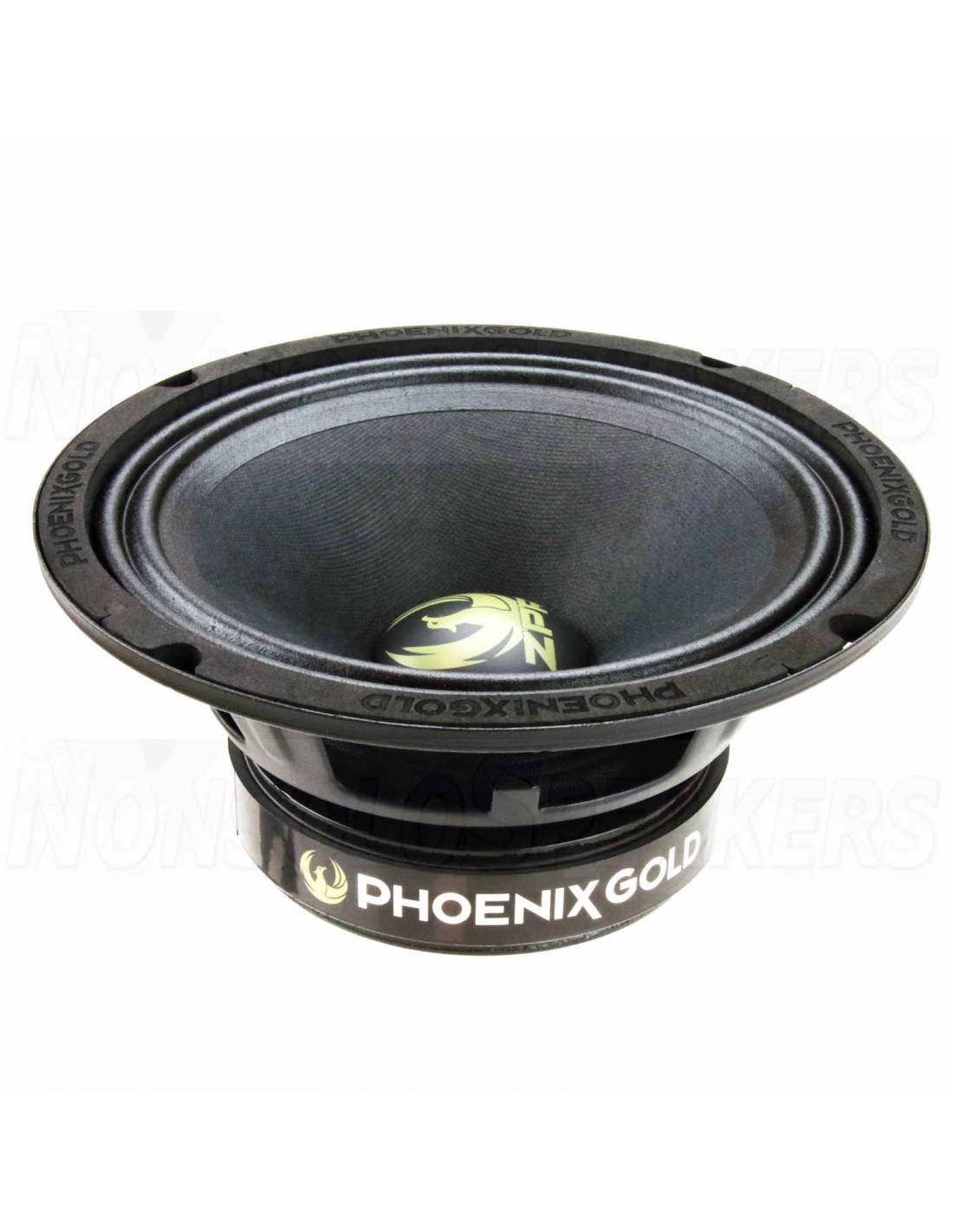

Phoenix Gold ZPR84 8″ midbass - midrange  SPL Pair

-Price for Pair-

The Phoenix Gold ZPX and ZPR collections have speaker elements for SPL systems. ZPR is the more robust option of the two. The elements of this collection include 2″ voice coils, 34 oz magnets and Triple Roll top suspensions. The structure of the elements is otherwise very traditional with a pressed steel frame and a pressed paper pulp cone.

Features:

• 8″ midbass/midrange driver
• impedance 4 ohms
• power consumption 325 W RMS, 650 W Peak (with appropriate filtering of course)
• sensitivity 92 db/1W/1m
• installation hole diameter 180 mm
• installation depth 88 mm
• playback range: 60 – 9,000 Hz
• Re: 3.0ohm
• Fs: 70.4Hz
• Qms: 4.40
• Qes: 0.70
• Qts: 0.60
• Cms: 0.30mm/N
• Left: 20.6 l
• BL: 5.7 N/A
• SD: 221.7cm²
• Eg: 17.1g
• protective grilles are NOT supplied with the elements
• the price is a pair price
