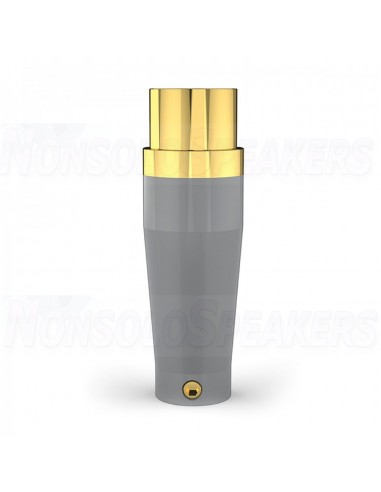

VIBORG ND05G DIN Connector 5 Poles Silver Plated Copper / 24k Gold Ø9mm

VIBORG ND05G DIN Connector 5 Poles Silver Plated Copper / 24k Gold Ø9mm

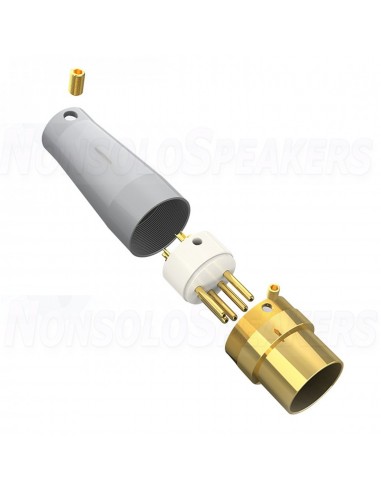

The Viborg ND05G is a beautifully crafted 5 pole DIN connector, designed with pure copper contacts with triple OFC copper, silver and 24k gold plating, providing both excellent conductivity and durability resistance. The body of the connector is made of brass and the insulation of PTFE. The connector accepts cables with a diameter of up to 9mm. This type of connector is notably used by certain Naim devices or in the case of MIDI connections.

Viborg ND05G DIN connector 5 pole copper silver / 24k gold plated Ø9mm

Technical characteristics

SPECIFICATIONS

Type of product 5-pin DIN connector

Contact material pure copper

Contact plating OFC Copper

Silver

24k Gold

Hull material Brass

Insulation PTFE

Max cable diameter Ø9mm

Type of mounting Welding

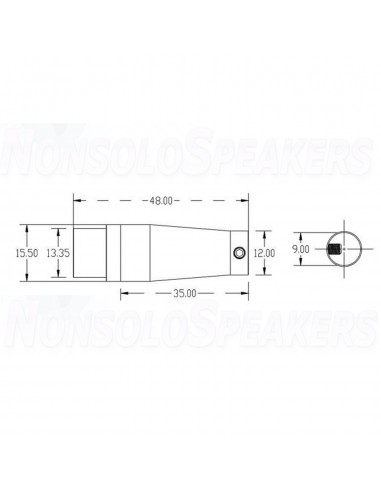

Overall dimensions 48x15.5mm
