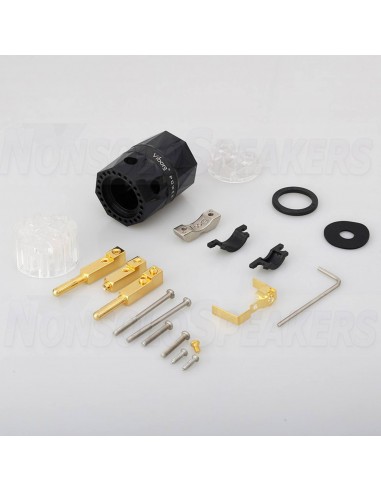

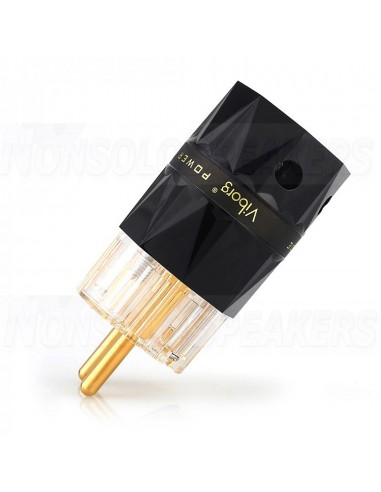

VIBORG VE503G Schuko Pure Copper Plated Silver / 24k Gold Ø19mm

VIBORG VE503G Schuko Pure Copper Plated Silver / 24k Gold Ø19mm

The Schuko Viborg VE503 connector offers excellent design quality and will allow you to design high-end mains cables to properly power your HiFi system. The connector contacts are thus made of pure copper, a material ensuring excellent electrical conductivity. These contacts also benefit from a triple OFC Copper, Silver and 24k Gold plating, in order to maximize conductivity while improving their resistance to oxidation.

The body of the connector is made of Polycarbonate Bayer-2805. The assembly of the conductors in the connector is done very simply using a screw system allowing a firm hold of the conductors.

Technical characteristics

SPECIFICATIONS

Type of product Schuko connector

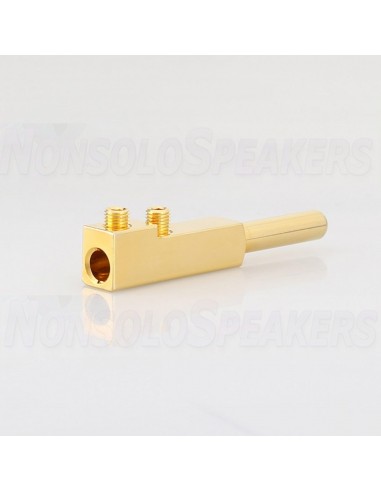

Contact material pure copper

Contact plating OFC Copper

Silver

24k Gold

Body and contact support materials Polycarbonate Bayer-2805

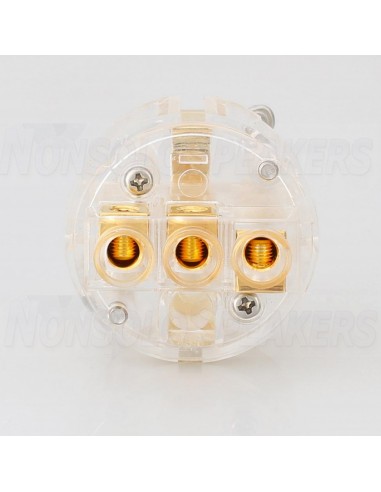

Type of mounting To be screwed (hexagon socket screws)

Max conductor diameter Ø4.5mm

Min/max cable diameter Ø6mm / Ø19mm

Voltage / Current 250VAC 16A

Overall dimensions 90 x Ø40mm

Color Black
