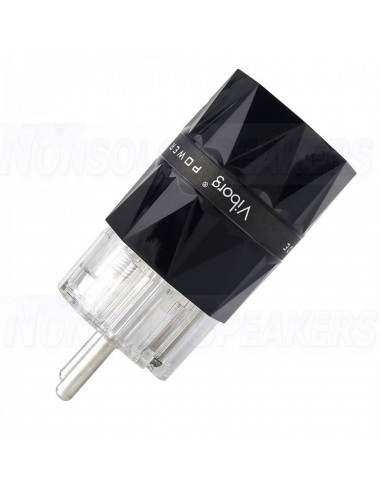

Viborg VE503s - Schuko 20mm 16A/250V Silver Copper Diamond body
Viborg VE503s - Schuko 20mm 16A/250V Silver Copper Diamond body
Thus, the contacts are made of pure Copper and benefit from a double plating of OFC Copper and Silver.The connector accepts cables with a diameter from Ø6mm to Ø19mm and conductors with a maximum diameter of Ø4.5mm.
Product type | Power connector |
Connector type | Male Schuko |
Cable external diameter | Ø6mm - Ø19mm |
Diamètre conducteur max. | Ø4.5mm |
Contacts material | Pure Copper |
Contacts plating | OFC Copper Silver |
You might also like
Viborg VE503s - Schuko 20mm 16A/250V Silver Copper Diamond body

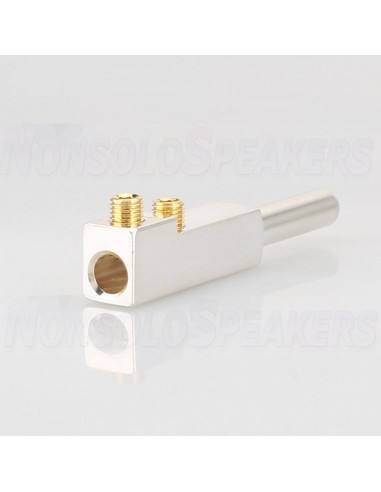

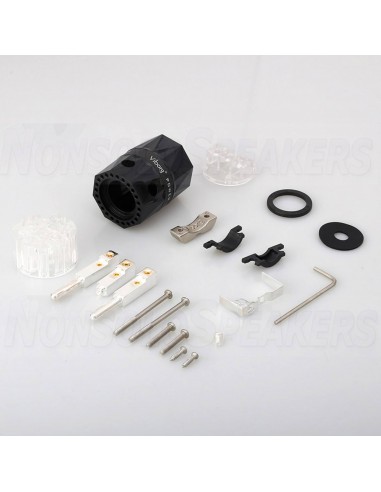

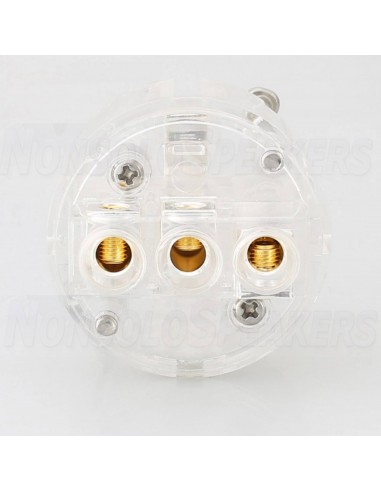

This high-end Schuko Viborg VE503S mains connector uses high-quality materials to provide the best possible electrical conductivity. Thus, the contacts are made of pure Copper and benefit from a double plating of OFC Copper and Silver. The body is made of a particularly resistant polycarbonate, Bayer Makrolon 2805. The assembly is extremely simple with a screw system, so no soldering is required. The connector accepts cables with a diameter from Ø6mm to Ø19mm and conductors with a maximum diameter of Ø4.5mm.
Technical characterisics
Specifications | |
---|---|
Product type | Power connector |
Connector type | Male Schuko |
Cable external diameter | Ø6mm - Ø19mm |
Diamètre conducteur max. | Ø4.5mm |
Contacts material | Pure Copper |
Contacts plating | OFC Copper Silver |
Body material | Bayer Makrolon 2805 |
Connection type | To screws |
Dimensions | 70 x 40mm |
Total length | 90mm |
Voltage / Current | 250VAC 16A |
