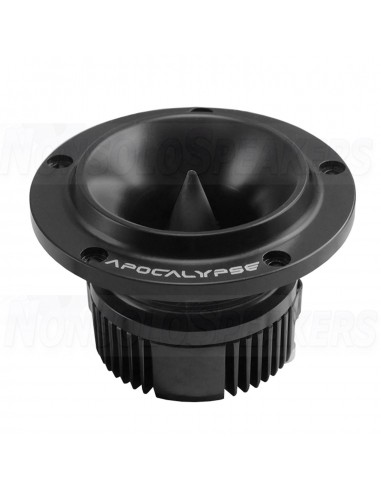

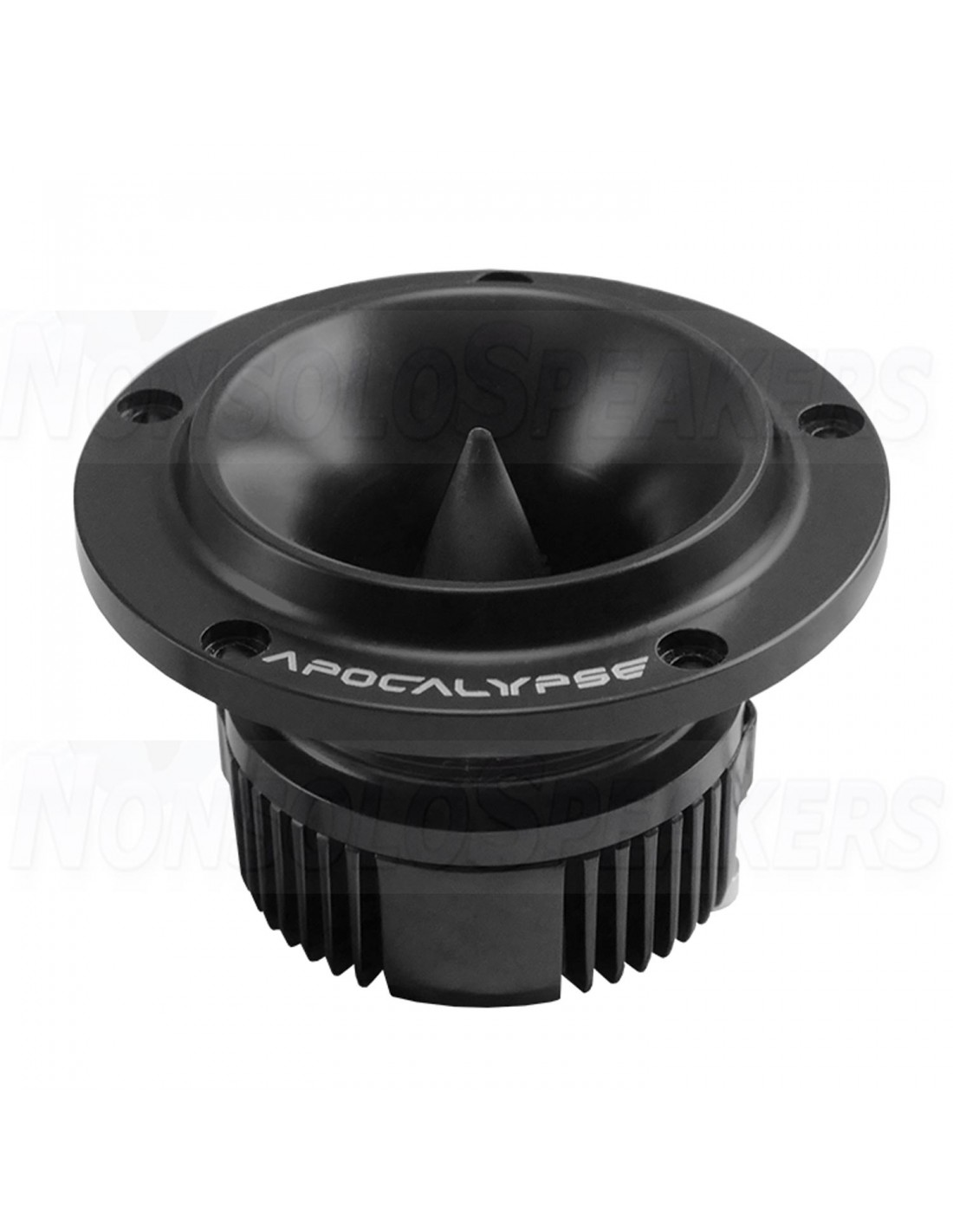

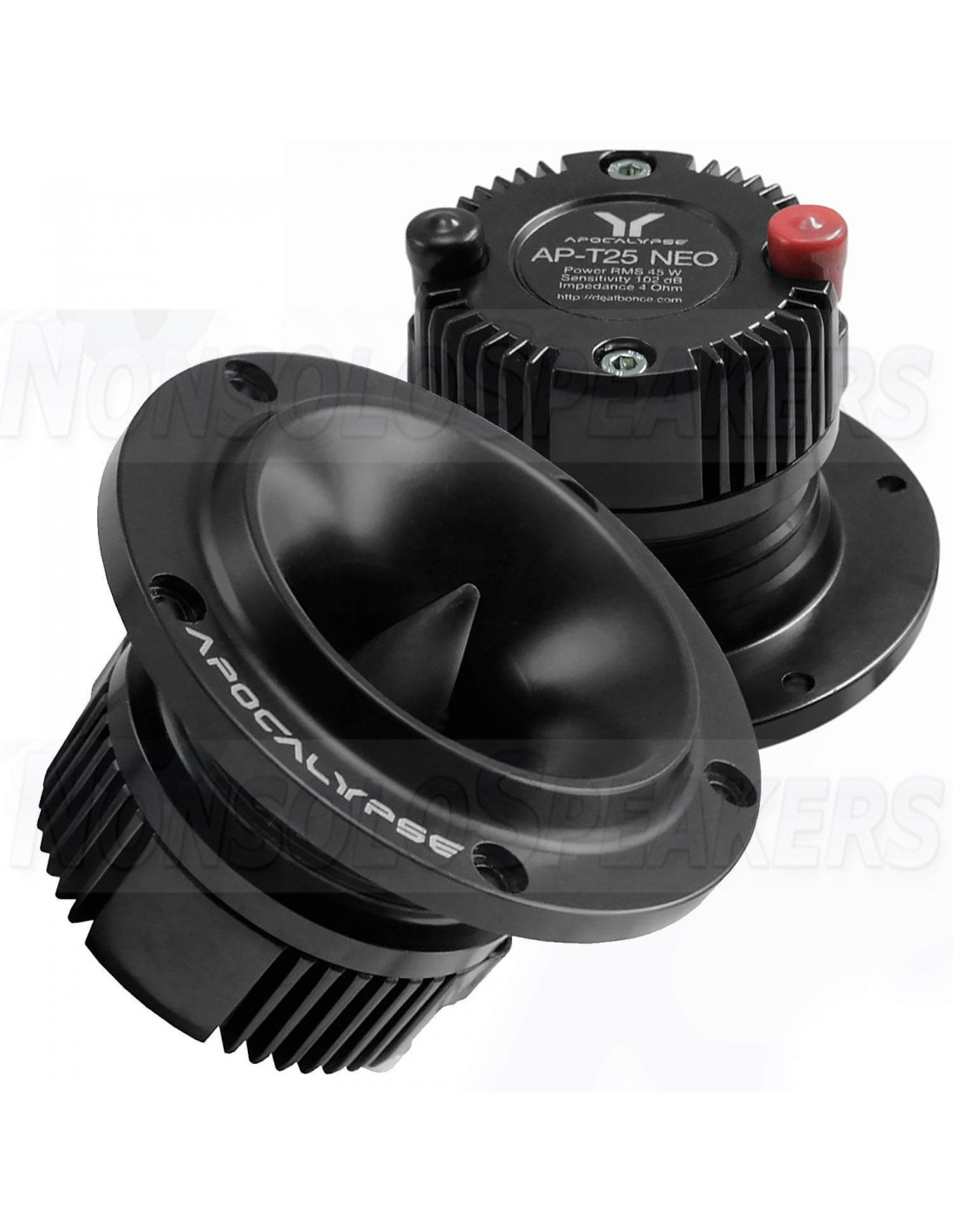

DEAF BONCE Apocalypse AP-T25 NEO V2 TWEETER with crossover

Extremely powerful and well-sounding horn treble. The element is equipped with a Neodynum magnet that has cooling fins to dissipate the heat at extreme sound pressures. This tweeter is absolutely one of the best on the market.

.

Technical data Tweeter

Triple size 2.5"

RMS power resistance 50W

Impact resistance MAX 100W

Frequency range 4000 - 20,000 Hz

Impedance 4 Ω

Magnet dimensions 1

Sensitivity 102dB

FS - resonant frequency 8000 Hz

Installation depth 53.0mm

Mounting hole 62.4mm

Weight 1kg

-

DB VOX Filter

The filter divides at 4000 Hz 12 dB/oct with treble attenuation in 3 phases 0,-3,-6 dB. This filter is perfect for low mids and horn trebles with dual PA.

Technical data

RMS power resistance 200W

Impact resistance MAX 500W

Impedance 2ohm midbass, 4ohm treble

Sharing frequency 4000 Hz
