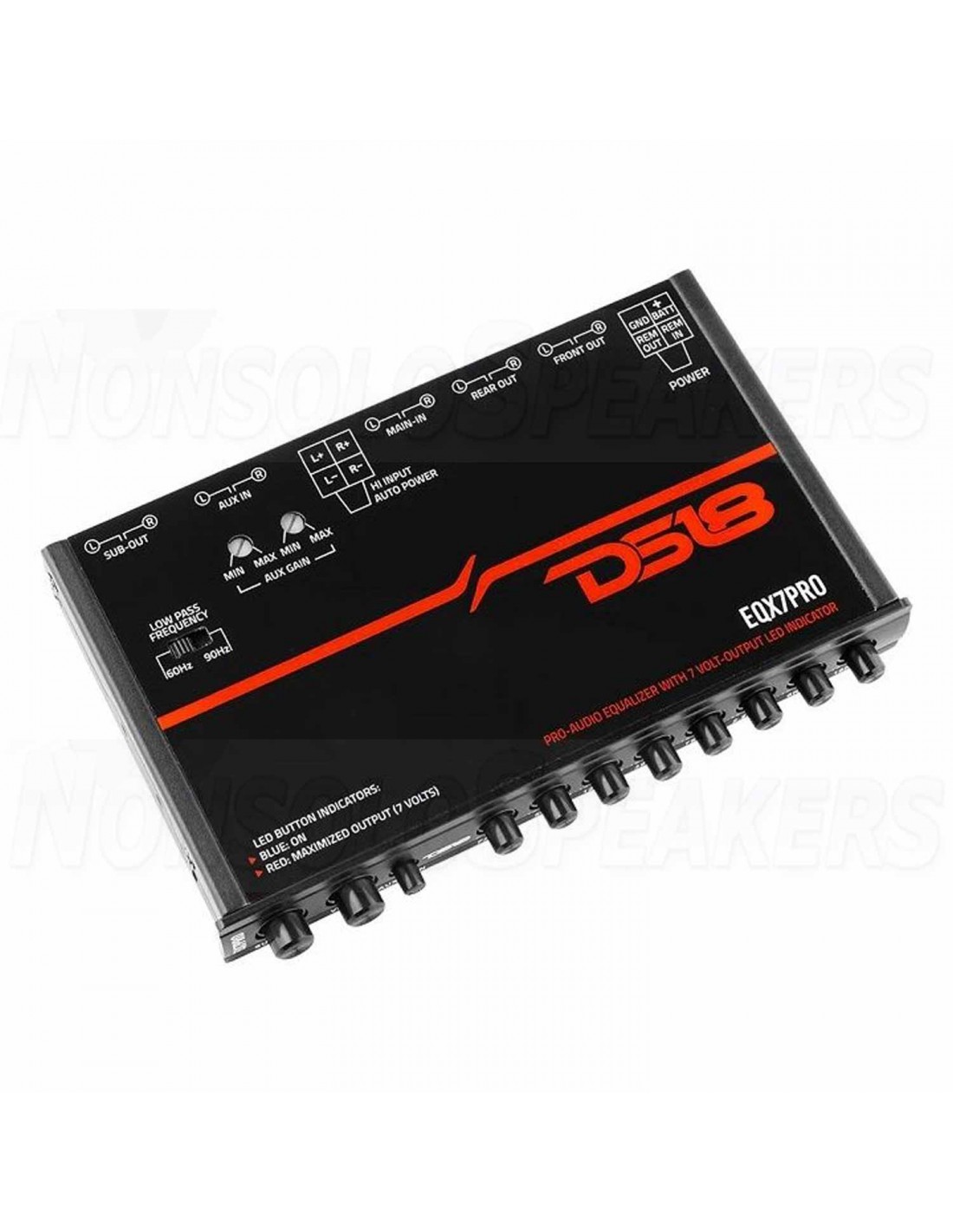

DS18 EQX7PRO High Volt 7-Band Equalizer with High Level Input, Auto Turn On And High Volt LED Indicator

.

The EQX7PRO allows you to take complete control of your audio system, pushing it past its limits with unparalleled precision and clarity. This high-strength 7-band stereo equalizer/crossover is the upgrade needed to achieve your audio dreams. Harnessing the power of its seven bands, including frequencies of 50Hz, 125Hz, 320Hz, 750Hz, 2.2KHz, 6KHz, and 16KHz, the EQX7PRO ensures the most precise audio reproduction. With adjustable frequencies ranging from -12 to +12dB (-15 to +15dB for subwoofer frequencies), you have the power to fine-tune your sound to perfection. Each band features a 7v output LED indicator, lighting a path for your musical journey like never before.

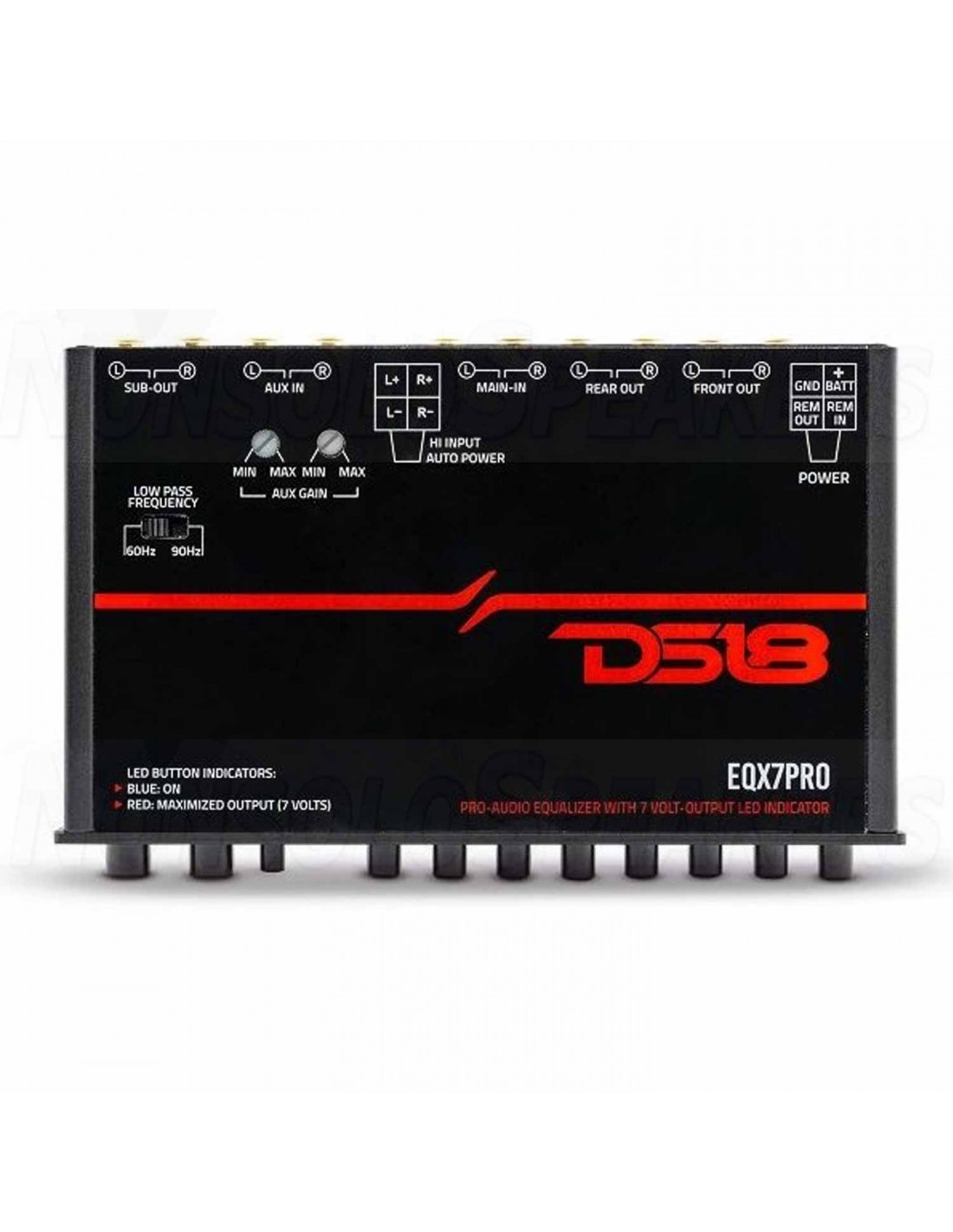

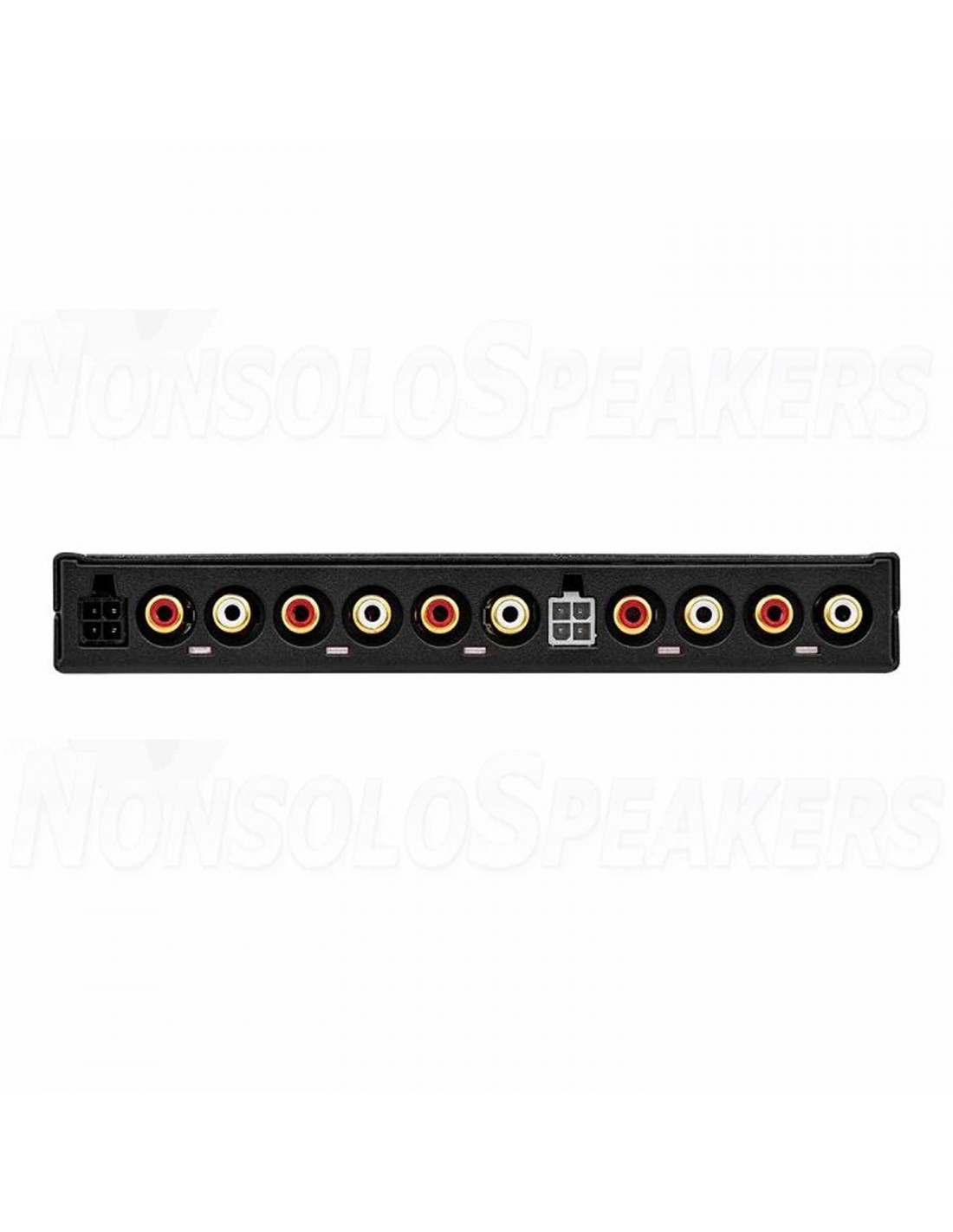

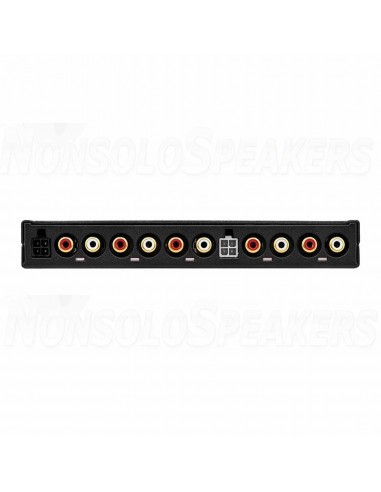

The EQX7PRO offers three stereo RCA outputs, dedicated to driving your front, rear, and subwoofer audio amplifiers. Take control of your audio experience with separate controls for master volume, subwoofer volume (sub level), front/rear fade, and the choice between main or auxiliary inputs. The integrated speaker Hi-Level Converter ensures low-level RCA output for seamless integration with your existing system. With the Auto Turn-On feature, the EQX7PRO activates automatically when connected directly to the factory radio source, eliminating the need for manual intervention. DS18 understands the importance of delivering audio with unmatched precision.

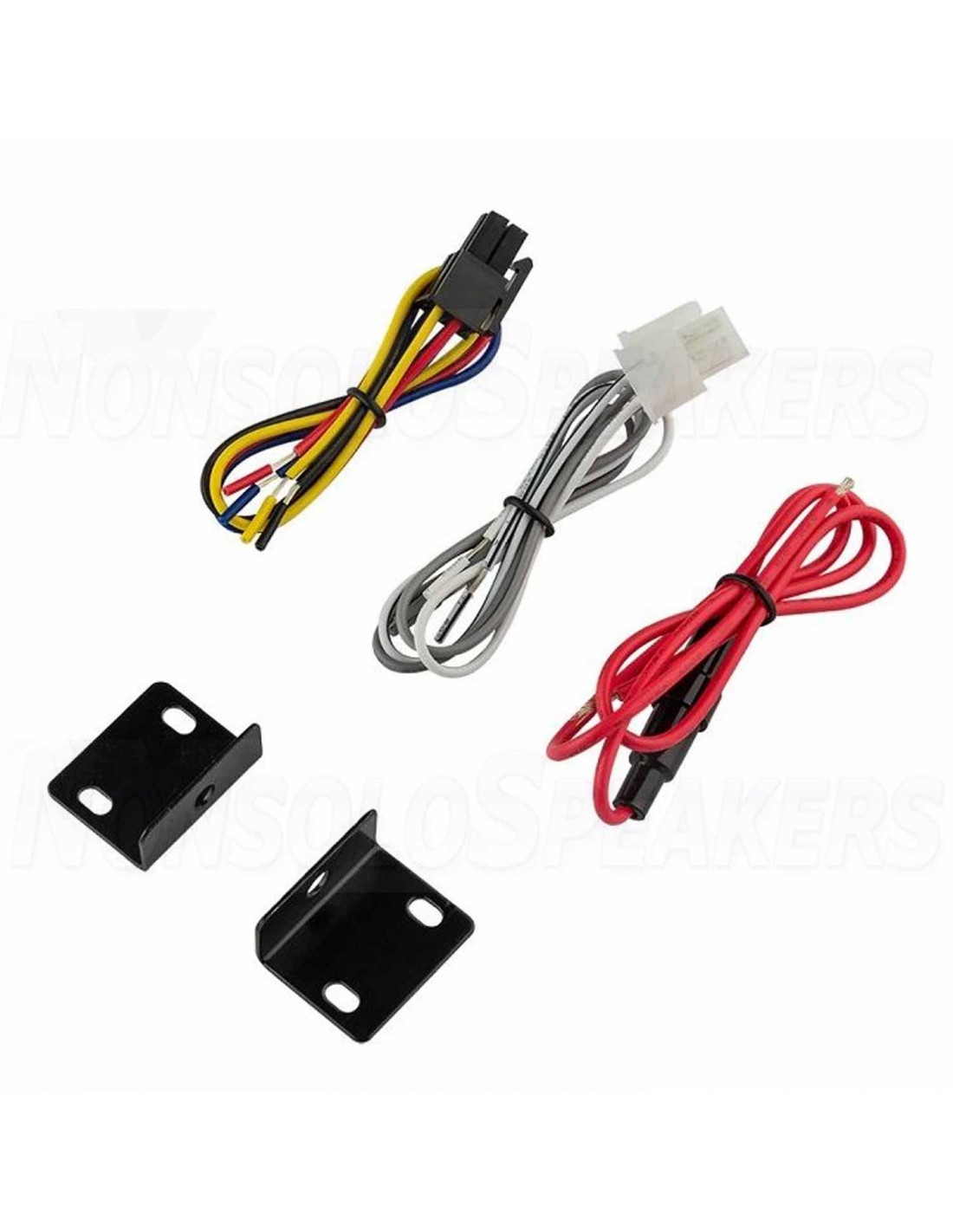

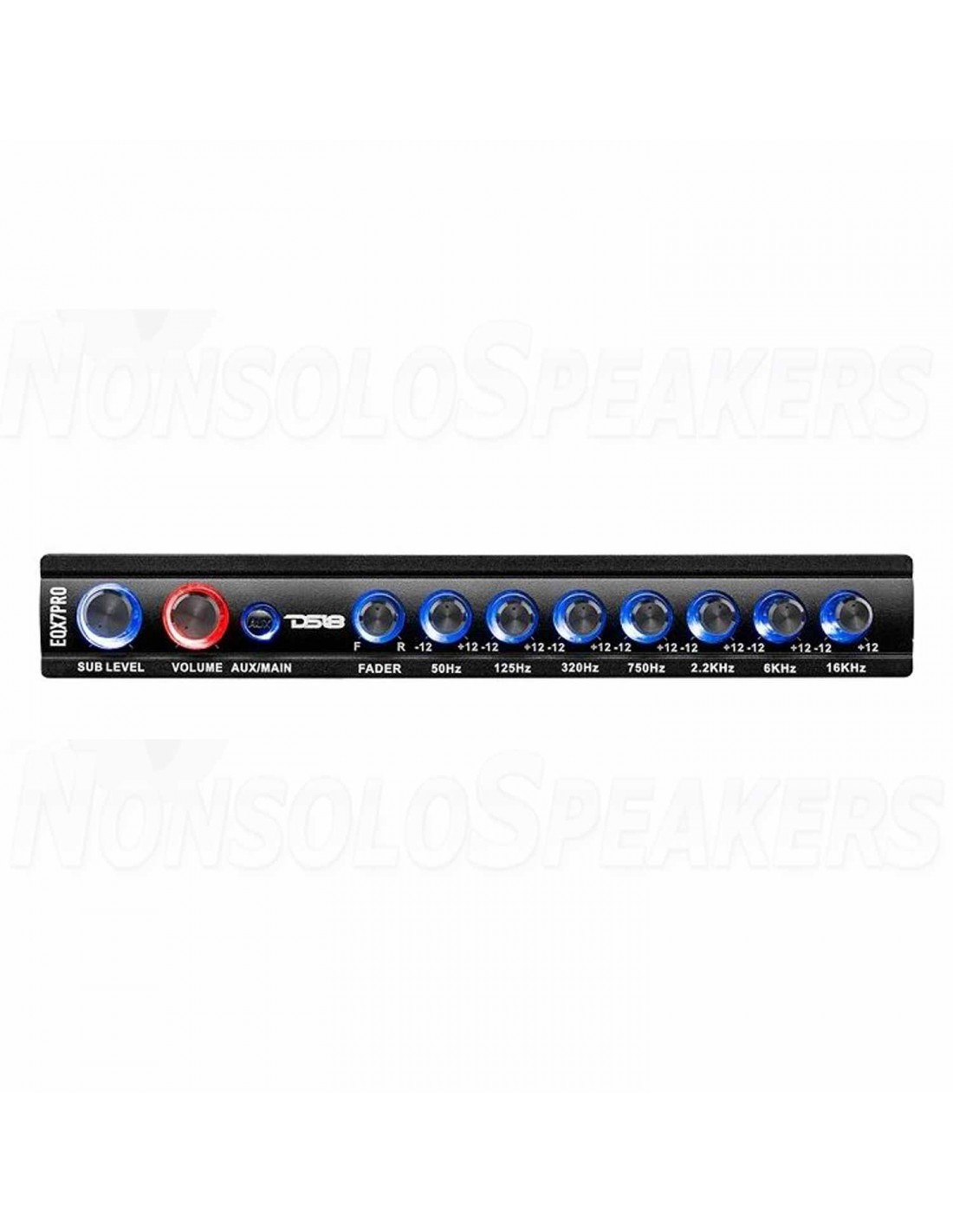

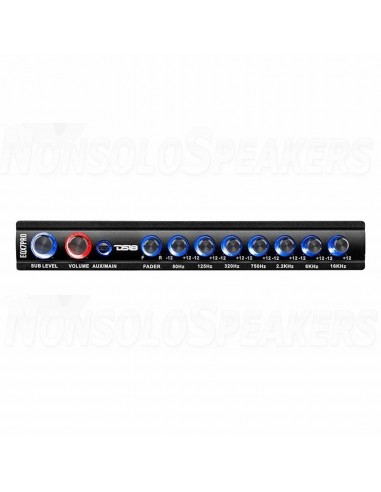

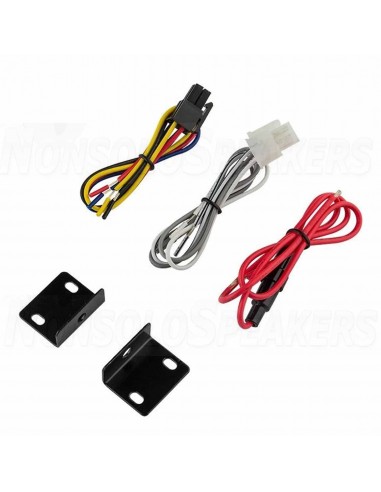

That's why the EQX7PRO offers an extended frequency response from 20Hz to 30KHz, boasting exceptional 100 dB signal-to-noise performance. The EQX7PRO can be mounted next to your source unit or discreetly underneath your dash, thanks to the included mounting brackets. This ensures easy access to the front panel controls right from the driver's seat, giving you full command of your audio system at your fingertips. It's time to shape your sound exactly how you envision it.

.

Technical Specifications:

• 7 band Equalizer (50hz, 125Hz, 320Hz, 750Hz, 2.2kHz, 6kHz and 16kHz) with a cut / boost of 12dB (15dB subwoofer frequency)
• Subwoofer section with adjustable LPF crossover from 60Hz to 120Hz at 12dB / oct.
• Separate volume controls for main and subwoofer.
• Fader knob to easy Front and Rear output selection.
• RCA auxiliary input Extended frequency response from 10Hz to 30kHz with exceptional sound quality.
• Blue Backlit with Red 7v output indicator
• High Level Speaker Input
• Auto Turn-on: Hi-Level Input
• Remote Turn on Input/Output
• Graphic Center Frequencies: 50hz, 125Hz, 320Hz, 750Hz, 2.2kHz, 6kHz and 16kHz
• Boost / Cut: 12dB (15dB subwoofer frequency)
• S/N Ratio: 100dB
• Frequency Response: 10hz-30khz +/- 1dB
• Maximum Output Voltage: 8V
• T.H.D: 0.005%
• Input Sensitivity: 50mV - 3V
• Head Room: 20dB
• Input Impedance: 20K OHMS
• Output Impedance: 2K OHMS
• Stereo Separation: 82dB/1KHz
• Operating Voltage: 11V-15V
• Length: 7"
• Width: 4.4"
• Height: 1.18"
