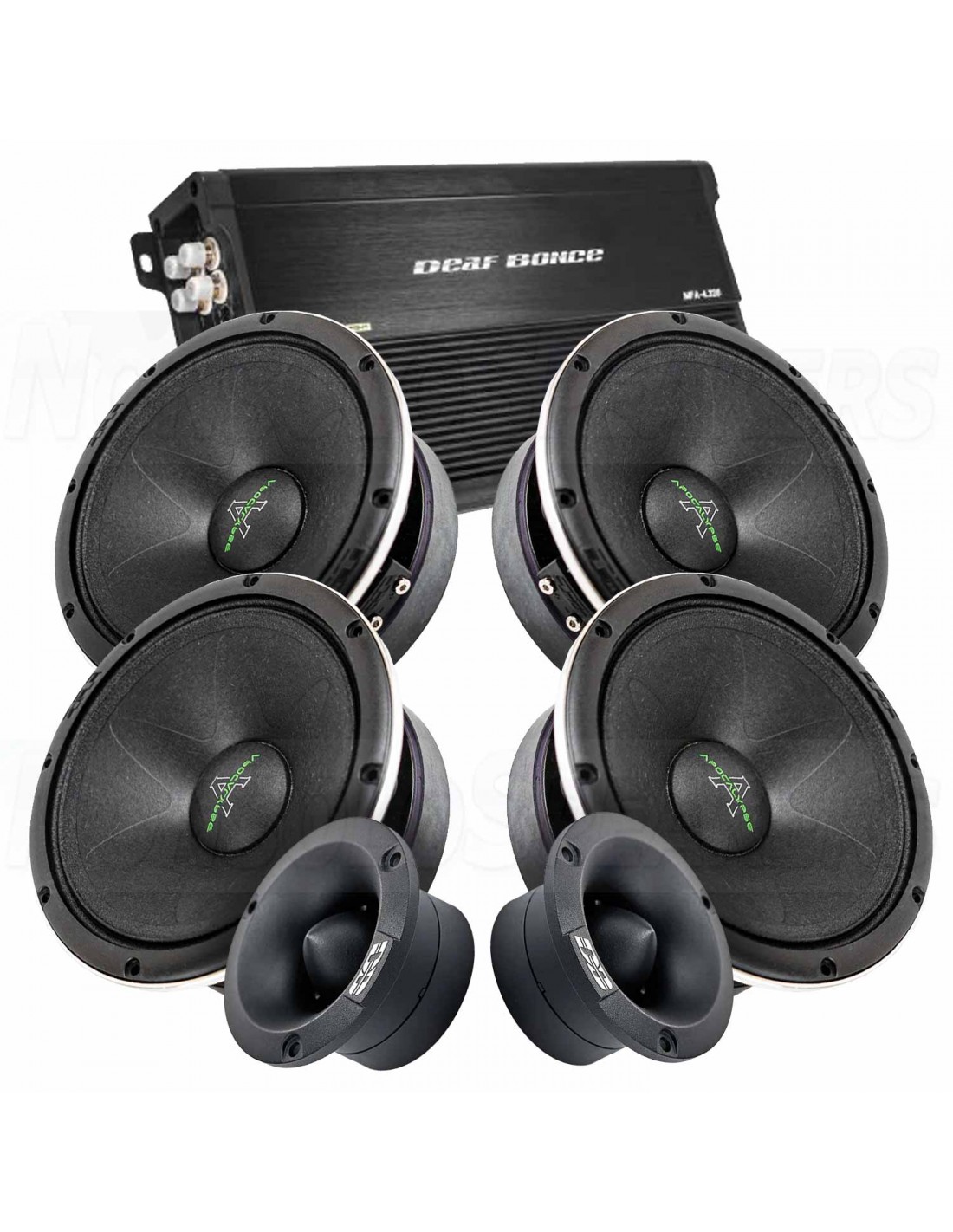

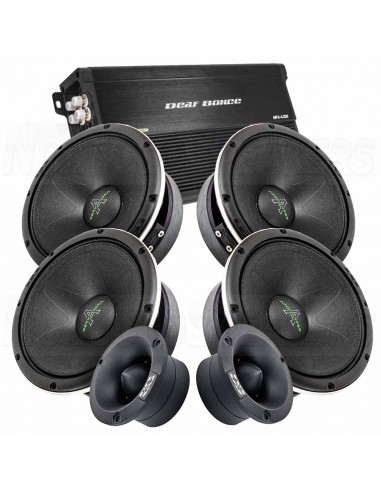

DEAF BONCE Apocalypse 6,5 kit

.

DEAF BONCE Apocalypse AP-M67AC

The Apocalypse AP-M67AC 6.5" midrange from DeafBonce is equipped with an extra large 1.75" voice coil that can withstand high temperatures. The AP-M67AC can handle up to 600W of music.

.

Specifications

Size of midbass 6.5"

Power handling RMS 300W

Power handling MAX 600W

Frequency range 160-10000hz

Impedance 4ohm

FS 187Hz

QTS 0.44

Vas 2.2L

Voice coil size 1.75

Sensitivity 102dB

BL 10

Installation depth 77mm

Speaker grille Optional

Mounting holes 152.8mm

Weight 7.1kg.

Deaf Bonce AT-32 tweeter pair 4 ohm 108 db

Deaf Bounce AT-32 A new 3" tweeter from DeafBonce in solid aluminum for more powerful installations with ultra high sensitivity of 108dB/1w. The treble works effectively from 8000Hz

.

Specifications

Model AT-32

Type tweeters

Size 3 inch

Frequency range 4000 - 20000 Hz

Amount in a package pair

Voice coil size 1.28 inch

diffuser material Aluminum

magnet material neodymium

winding copper clad aluminum

RMS power 35 W

Max Power 70 W

Frame Aluminum

Impedance 4 ohm

SPL 108.00 dB

Mounting depth 34.5mm

mounting hole 53.0 mm

Weight with packaging 1.00 kg

Equipment tweeters - 2 pcs., capacitors - 2 pcs., instructions, warranty card+

.

Deaf Bonce MFA-4.220

MFA-4.220 The new series MFA stages are small compact class D amplifiers but a lot of power in themselves. The stage has built-in filters for active sharing for speaker kits mid-range/mid-bass and treble The step works in Class D so they don't overheat

.

Specifications

Model MFA-4.220

Class D

Number of channels 4

Frequency range 20-20000 Hz

Power RMS @ 2 ohms (14.4V) 330W x 4

Power RMS @ 4 ohms (14.4 V) 220 W x 4

Power RMS @ 4 ohms (Bridge) 660W x 2

Minimum load resistance per channel 2 ohm

Minimum load resistance in bridged mode 4 ohms

Input sensitivity 0.4 - 8 V

Low pass filter 50-12000 Hz

High pass filter 50-12000 Hz

Simultaneous activation of LPF and HPF yes

Crossover 12 dB/Oct

Input terminal 4 Ga

Output terminal 10 Ga

Operating voltage 9 - 15 V

Signal/Noise ≥ 90 dB

Dimensions (LxWxH) 151.9 x 267.0 x 54.7 mm

Shipping weight 1.00 kg

Equipment Amplifier, mounting kit, manual, warranty card
